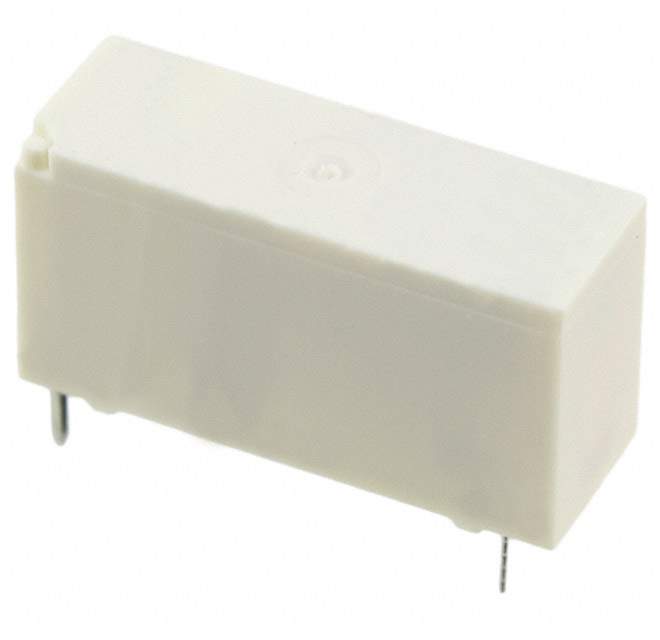

V23061A1007A302 Real Image
Same model may have multiple batches, images only for reference.

V23061A1007A302

Part No V23061A1007A302
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series MSR, SCHRACK
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 10.6 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class A
Must Operate Voltage 16.3 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 2.27 kOhms
Base Product Number V23061
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names 3-1393222-9,PB1221,V23061A1007A302-ND
Standard Package 20
Win Source Part Number 1103594-V23061A1007A302
Ultra Librarian 3D Model Ultra Librarian V23061A1007A302 CAD Model

Description

The V23061A1007A302 is a general-purpose power relay with a coil voltage of 24VDC and a contact rating of 8A. V23061A1007A302 has a SPST-NO (1 Form A) contact form and comes in a tube package.

  • Coil Voltage: 24VDC
  • Contact Rating: 8A
  • Contact Form: SPST-NO (1 Form A)
  • Coil Resistance: 2.27 kOhms
  • Coil Current: 10.6mA
  • Operate Time: 10ms
  • Release Time: 5ms
