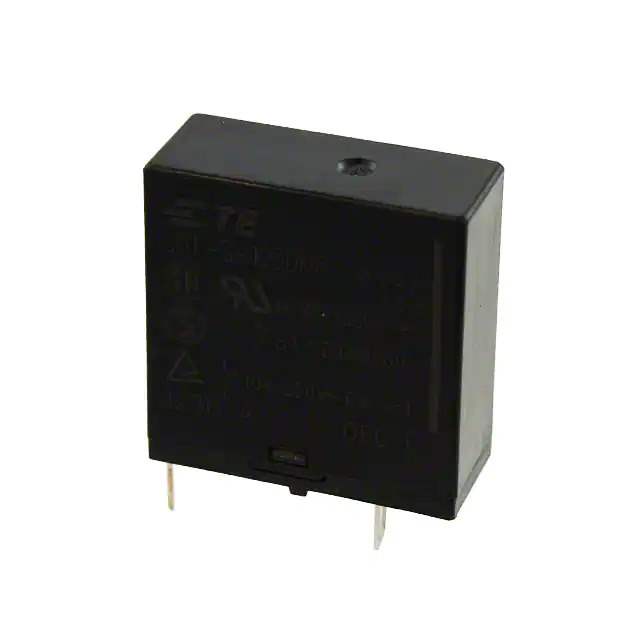

SDT-S-105LMR2,000 Real Image
Same model may have multiple batches, images only for reference.

SDT-S-105LMR2,000

Part No SDT-S-105LMR2,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series SDT-R, OEG
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 30 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class E
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -30°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 167 Ohms
Base Product Number SDT-S-105
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 933243-SDT-S-105LMR2,000
Ultra Librarian 3D Model Ultra Librarian SDT-S-105LMR2,000 CAD Model

Description

The 860641 relay from TE Connectivity is a power relay designed for various applications. It is part of the SDT-R and OEG series, known for their reliability and performance.

  • Termination Style: PC Pin
  • Packaging: Tube
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Resistance: 167 Ohms
  • Coil Current: 30 mA
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Coil Voltage: 5VDC
  • Contact Rating: 5 A
  • Switching Voltage: 250VAC and 30VDC (Maximum)
  • Mounting Type: Through-Hole
  • Operating Temperature: -30°C to 70°C
  • Coil Insulation: Class E
  • ECCN: EAR99
  • Status: Obsolete
