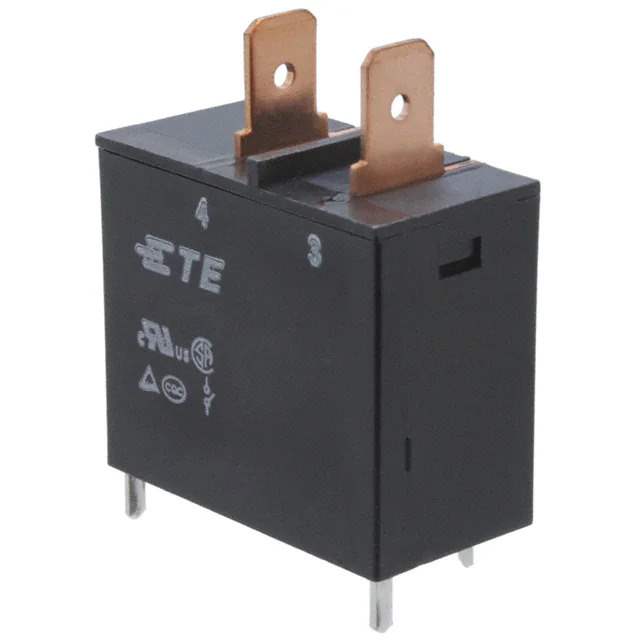

PCF-124D2M,000 Real Image
Same model may have multiple batches, images only for reference.

PCF-124D2M,000

Part No PCF-124D2M,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 25A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series PCF, OEG
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 25 A
Switching Voltage 277VAC, 24VDC - Max
Coil Current 37.5 mA
Coil Type Non Latching
Termination Style PC Pin, Quick Connect - 0.250" (6.3mm)
Must Operate Voltage 18 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -30°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 640 Ohms
Base Product Number PCF-124
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 847868-PCF-124D2M,000
Ultra Librarian 3D Model Ultra Librarian PCF-124D2M,000 CAD Model

Description

The 847868-PCF-124D2M,000 is a power relay from TE Connectivity.

  • Series: PCF and OEG.
  • Package: Bulk (20 pieces).
  • Application: Power relay.
  • Current Rating: 25 Amps.
  • Contact Form: SPST-NO (1 Form A).
  • Contact Material: Silver tin oxide (AgSnO).
  • Coil Resistance: 640 Ohms.
  • Coil Current: 37.5 mA.
  • Operate Time: 20 ms.
  • Release Time: 10 ms.
  • Coil Voltage: 24VDC.
  • Switching Voltage: 277VAC and 24VDC.
  • Seal Rating: Not specified.
  • Mounting Type: Through hole.
  • Operating Temperature Range: -30°C to 55°C.
  • MSL Level: 1 (Unlimited).
  • Coil Insulation: Not specified.
  • Must Operate Voltage: 18 VDC.
  • Must Release Voltage: 1.2 VDC.
  • REACH Status: REACH unaffected.
  • HTSUS Code: 8536.41.0050.
  • Base Product Number: PCF-124.
  • Status: Obsolete.
