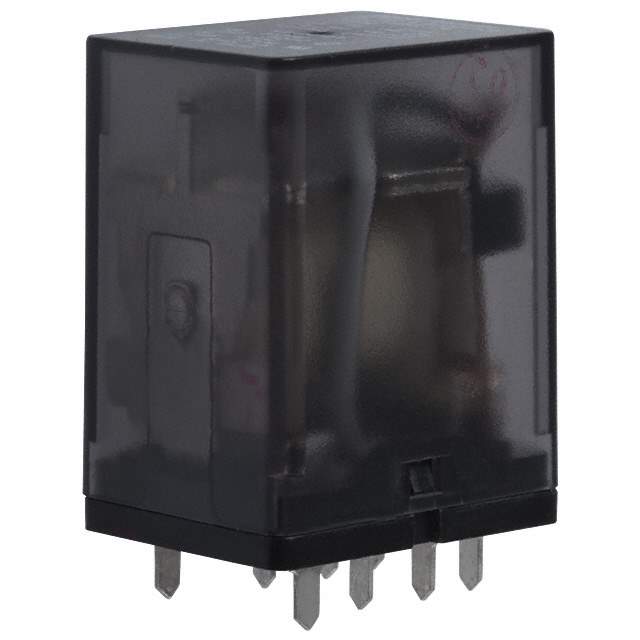

K10P-11D55-24 Real Image
Same model may have multiple batches, images only for reference.

K10P-11D55-24

Part No K10P-11D55-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 15A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series K10
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 15 A
Switching Voltage 120VAC - Max
Coil Current 37 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class B
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 13 ms
Release Time 10 ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 650 Ohms
Base Product Number K10P
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0050
Other Names PB328,K10P11D5524,6-1393144-8,PB328-NDR
Standard Package 25
Win Source Part Number 1018372-K10P-11D55-24
Ultra Librarian 3D Model Ultra Librarian K10P-11D55-24 CAD Model

Description

The K10P-11D55-24 is a general-purpose relay that is non-latching and has a DPDT contact form.

  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Series: K10 series
  • Package: Bulk
  • Standard Package: 25 pieces
  • Contact Material: Silver cadmium oxide (AgCdO)
  • Coil Resistance: 650 ohms
  • Coil Current: 37 mA
  • Operating Time: 13 ms
  • Switching Voltage: 120VAC - Max
  • Release Time: 10 ms
  • Mounting Type: Through-hole
  • Operating Temperature Range: -45°C to 70°C
  • REACH: REACH affected
  • RoHS: RoHS non-compliant
