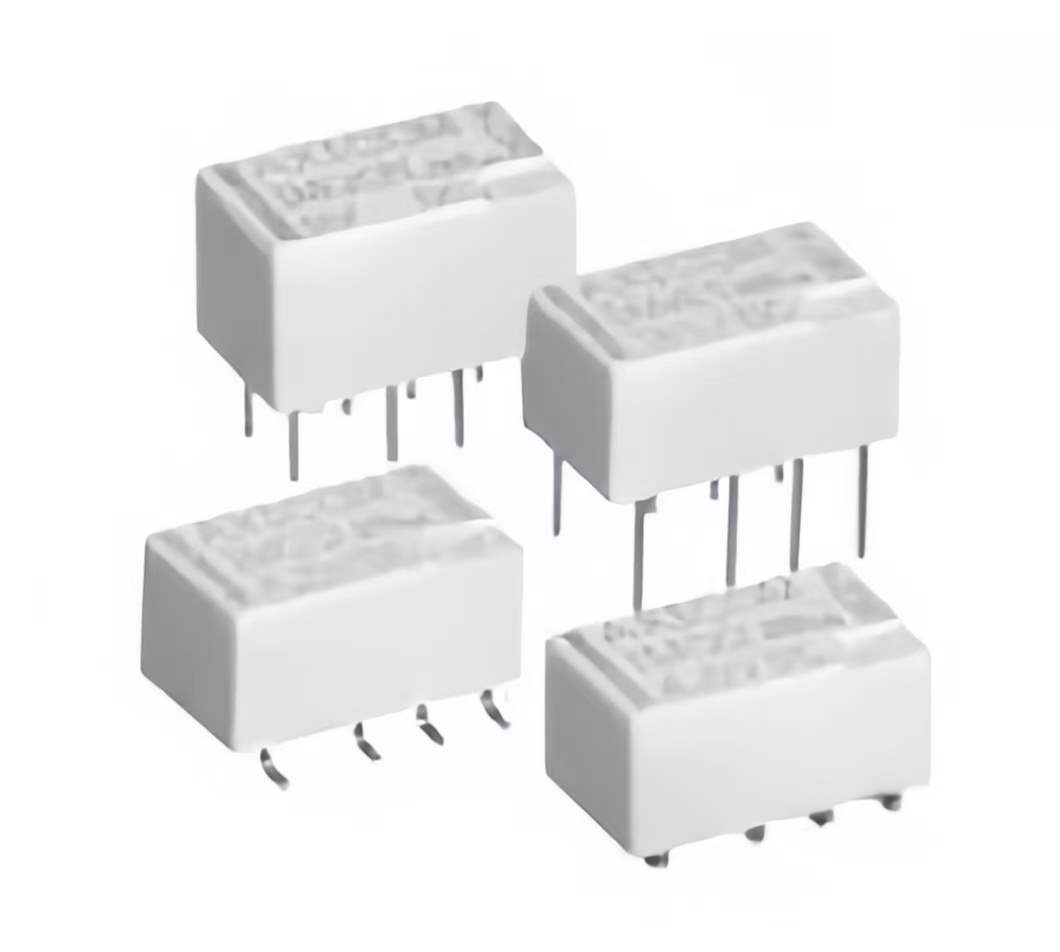

IM21GR TE Connectivity / P&B
Same model may have multiple batches, images only for reference.

IM21GR

Part No IM21GR
Manufacturer TE Connectivity
Catalog High Frequency (RF) Relays
Description High Frequency / RF Relays IM RELAY 50mW 3V
Datasheet
IM21GR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Category High Frequency / RF Relays
Coil Voltage 3 VDC
Relay Contact Form 2 Form C (DPDT-NO, NC)
Frequency 900 MHz
Contact Termination Gull Wing Lead
Coil Type Non-Latching
Power Consumption 300 mW
Isolation - 18.8 dB
Insertion Loss - 0.33 dB
Packaging Reel
Brand TE Connectivity / P&B
Coil Resistance 180 Ohms
Ultra Librarian 3D Model Ultra Librarian IM21GR CAD Model

Description

Features

  • Slim line 10x6 mm, low profile 5.65 mm and min. board-space 60mm².
  • Switching current 2/5 A, switching power 60 W/62.5 VA and switching voltage 220 VDC/250 VAC.
  • Low coil power consumption, 140 mW standard, 100 mW for high sensitive version, 50 mW for ultra high sensitive version and 100 mW for bistable version.
