Product Overview: TC4424MJA from Microchip Technology

The TC4424MJA is a robust, high-performance power MOSFET driver manufactured by Microchip Technology, designed to cater to a wide range of power management and conversion applications. This device is capable of delivering a peak output current of 3A, making it an excellent choice for driving large capacitive loads with exceptional speed and efficiency.

Key Features

• High Peak Output Current: With a peak output current of 3A, the TC4424MJA can easily drive large power MOSFETs and IGBTs.
• Wide Operating Voltage Range: The device operates over a supply voltage range of 4.5V to 18V, accommodating various circuit designs and ensuring versatility across different applications.
• High-Speed Operation: The TC4424MJA offers fast rise and fall times of typically 25ns and 20ns respectively, ensuring swift and reliable switching performance.
• Protection Features: Built-in latch-up protection enhances the device's robustness, safeguarding it against over-current conditions.
• Input/Output Pin Compatibility: The input can withstand negative swings up to 5V, which is ideal for robustness in noisy environments. The output is fully compatible with TTL/CMOS.
• Temperature Range: The device is designed to operate within a military temperature range of -55°C to +125°C, ensuring reliability in extreme conditions.

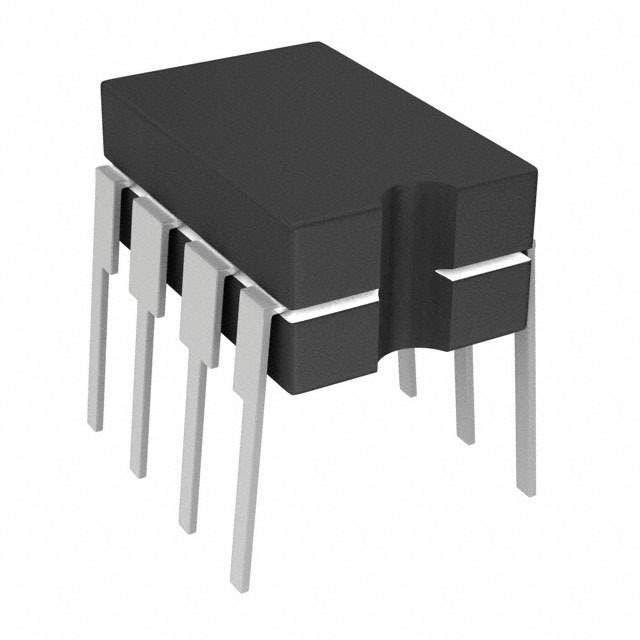

• Packaging: The TC4424MJA comes in a CERDIP-8 package, which offers excellent thermal and mechanical reliability.

Applications

The TC4424MJA is suitable for a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• DC to DC converters
• Motor and Solenoid Drivers
• Pulse Transformer Drivers
• Class D Switching Amplifiers

With its impressive driving capabilities and robust design, the TC4424MJA from Microchip Technology stands out as an essential component for designers who require reliable and high-speed operation in their power conversion and management systems.
