Product Overview: MIC4422AZT by Microchip Technology
The MIC4422AZT is a robust and reliable MOSFET driver IC designed and manufactured by Microchip Technology. This driver is specifically engineered to translate low-power input signals into high-current drives suitable for a variety of power MOSFETs and IGBTs. It is a highly efficient solution for applications requiring fast switching and high-side or low-side gate drive capability.
Key Features
- High Peak Output Current: The MIC4422AZT can deliver a peak output current of up to 9A, making it an excellent choice for driving large capacity MOSFETs that require high surge currents for quick switching.
- Wide Operating Voltage Range: This driver operates over a supply range of 4.5V to 18V, accommodating a variety of control logic levels and providing flexibility in system design.
- Fast Switching Speed: With a typical rise time of 25ns and a fall time of 20ns, the MIC4422AZT ensures rapid switching, reducing transition losses and improving overall efficiency.
- Latch-Up Protection: The device features built-in latch-up protection, enhancing its reliability and robustness in adverse conditions.
- Low Power Consumption: The MIC4422AZT has a low quiescent current, which helps to minimize power consumption when the driver is in the idle state.
Applications
The MIC4422AZT is versatile and can be used in a wide range of applications, including:
- Switch Mode Power Supplies (SMPS)
- DC-DC Converters
- Motor Control Circuits
- Power Inverters
- Class D Switching Amplifiers
Package and Quality

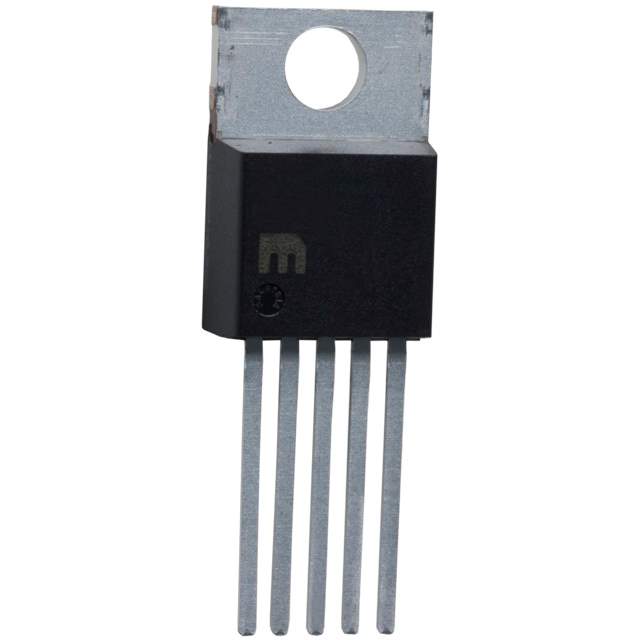

The device is offered in a TO-220-5 package, which is designed to handle increased power dissipation and ensure mechanical robustness. Microchip Technology's commitment to quality ensures that the MIC4422AZT meets the stringent standards required for industrial and commercial electronic systems.
Overall, the MIC4422AZT from Microchip Technology is a high-performance, reliable solution for driving power MOSFETs and IGBTs in a wide array of electronic applications. Its robust design and advanced features make it a preferred choice for engineers and designers looking for a high-quality MOSFET driver.
