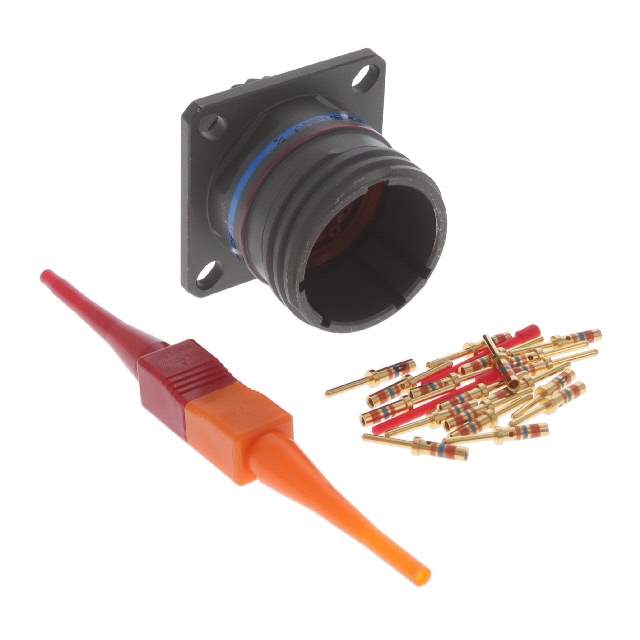

Same model may have multiple batches, images only for reference.

D38999/20WD18PN

Get a Quote

Part No	D38999/20WD18PN
Manufacturer	TE Connectivity
Catalog	Circular Connectors
Description	CONN RCPT MALE 18POS GOLD CRIMP / 18 Position Circular Connector Receptacle, Male Pins Crimp
Datasheet	D38999/20WD18PN Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Circular Connectors
Mfr	TE Connectivity Deutsch Connectors
Series	Military, MIL-DTL-38999 Series III, DTS
Package	Bulk
Connector Type	Receptacle, Male Pins
Number of Positions	18
Shell Size - Insert	15-18
Shell Size, MIL	D
Mounting Type	Panel Mount
Mounting Feature	Flange
Termination	Crimp
Fastening Type	Threaded
Orientation	N (Normal)
Primary Material	Metal
Shell Material	Aluminum
Shell Finish	Olive Drab Cadmium
Contact Finish - Mating	Gold
Color	Olive Drab
Ingress Protection	Environment Resistant
Features	Self Locking
Shielding	Shielded
Current Rating (Amps)	7.5A
Temperature Range - Operating	-65°C ~ 175°C
Contact Material	Copper Alloy
Contact Finish Thickness - Mating	50.0µin (1.27µm)
Insert Material	Thermoplastic
Applications	Military
Base Product Number	D38999/20WD
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4020
Other Names	DD38999/20WD18PN
Standard Package	1
Win Source Part Number	1228195-D38999/20WD18PN
Ultra Librarian 3D Model	Ultra Librarian D38999/20WD18PN CAD Model

Description

The D38999/20WD18PN from TE Connectivity Deutsch Connectors is a circular connector designed for military applications.

Application: Military
Type: Receptacle
Pin Gender: Male
Locking: Self-Locking
Current Rating: 7.5A
Temperature Range: -65°C to 175°C
Ingress Protection: Environment-Resistant
Shielded: Yes
Mounting: Flange
Panel Mount: Yes
Package: Bulk
Standard Package: 1
RoHS: Non-Compliant
