Same model may have multiple batches, images only for reference.

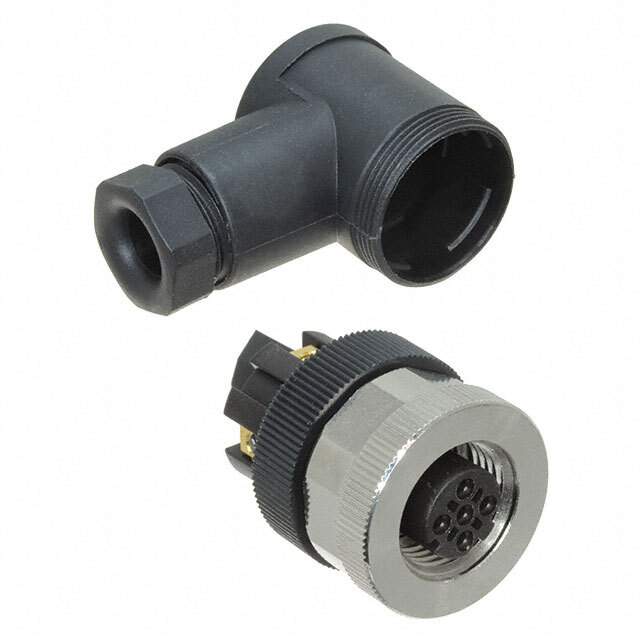

T4112002041-000 Real Image
Same model may have multiple batches, images only for reference.

T4112002041-000

Part No T4112002041-000
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN PLUG FMALE 4POS GOLD SCREW / 4 Position Circular Connector Plug, Female Sockets Screw
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr TE Connectivity AMP Connectors
Series M12
Package Bulk
Connector Type Plug, Female Sockets
Number of Positions 4
Shell Size - Insert M12-4
Mounting Type Free Hanging (In-Line), Right Angle
Termination Screw
Fastening Type Threaded
Orientation A
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Gold
Color Black, Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell, Coupling Nut
Shielding Unshielded
Current Rating (Amps) 4A
Voltage Rating 250V
Cable Opening 0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Temperature Range - Operating -40°C ~ 85°C
Backshell Material, Plating Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Zinc Alloy
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insert Material Polyamide (PA), Nylon
Applications Industrial
Base Product Number T41120
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names 2266-T4112002041-000,T4112002041-000-ND,A133890,-T4112002041-000-SI
Standard Package 1
Win Source Part Number 1097740-T4112002041-000
Ultra Librarian 3D Model Ultra Librarian T4112002041-000 CAD Model

Description

The M12 series circular connector is a plug with female sockets that has 4 positions.

  • Color: black and silver
  • Features: backshell and coupling nut
  • Termination Type: screw
  • Fastening Type: threaded
  • Package: bulk
  • Standard Package: 1
  • Voltage Rating: 250V
  • Ingress Protection: IP67
  • Applications: industrial applications
  • Orientation: A
  • Shell Size: M12-4
  • Contact Finish for Mating: gold
  • Shell Material: brass
  • Shell Finish: nickel
  • Insert Material: polyamide (PA)
  • Alternative parts: also available
