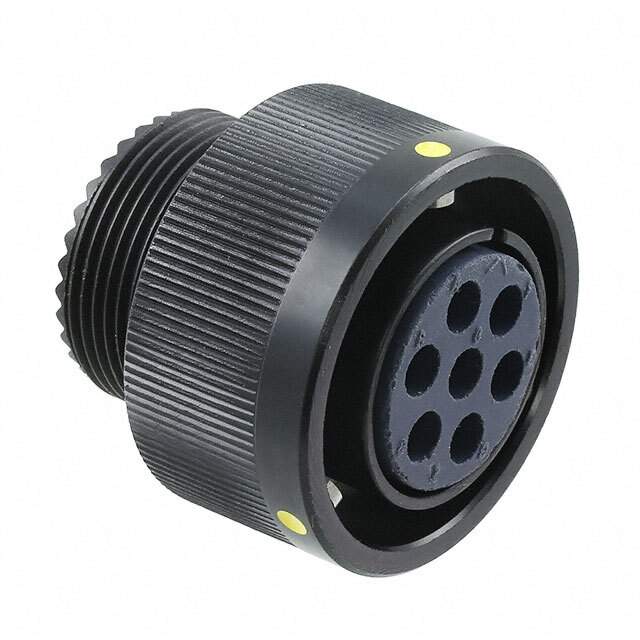

Same model may have multiple batches, images only for reference.

CIRHSE06T2015SCNF80M32V0

Name: CIRHSE06T2015SCNF80M32V0
Brand: TE Connectivity
SKU: 1035581
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CIRHSE06T2015SCNF80M32V0
Manufacturer	TE Connectivity
Catalog	Circular Connectors
Description	CONN PLUG HSG FMALE 7POS INLINE / 7 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Circular Connectors - Housings
Mfr	TE Connectivity AMP Connectors
Series	CIRH
Package	Bulk
Connector Type	Plug Housing
Type	For Female Sockets
Number of Positions	7
Shell Size - Insert	20-15
Contact Type	Crimp
Contact Size	12
Mounting Type	Free Hanging (In-Line)
Fastening Type	Bayonet Lock
Orientation	N (Normal)
Shell Material	Aluminum Alloy
Shell Finish	Zinc Cobalt
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Features	Coupling Nut
Shielding	Shielded
Note	Contacts Not Included
Insert Material	Rubber, Halogen Free
Contact Shape	Circular
Temperature Range - Operating	-55°C ~ 200°C
Base Product Number	CIRHSE06
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8538.90.8180
Other Names	Y5015-000000100014,A124274,2266-CIRHSE06T2015SCNF80M32V0
Standard Package	10
Win Source Part Number	1035581-CIRHSE06T2015SCNF80M32V0
Ultra Librarian 3D Model	Ultra Librarian CIRHSE06T2015SCNF80M32V0 CAD Model

Alternative Products

Description

The CIRHSE06T2015SCNF80M32V0 is a circular connector housing manufactured by TE Connectivity AMP Connectors.

Series: CIRH series product
Feature: shielded feature that offers dust tight and waterproof protection
Design: designed for female sockets
Feature: includes a coupling nut
Fastening Type: bayonet lock
Mounting Type: free hanging (in-line)
