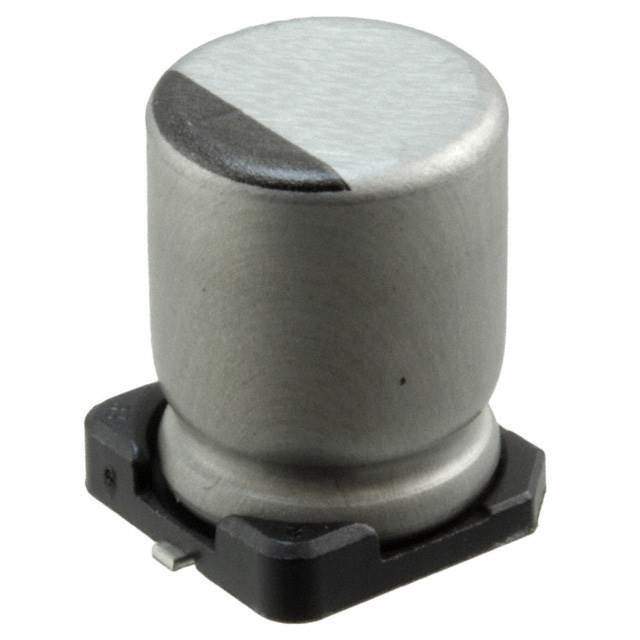

UUL1H470MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUL1H470MNL1GS

Part No UUL1H470MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 50V SMD / 47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UUL1H470MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUL
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 92 mA @ 120 Hz
Ripple Current @ High Frequency 138 mA @ 10 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338468-UUL1H470MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUL1H470MNL1GS CAD Model

Description

The Nichicon UUL series aluminum electrolytic capacitor is designed for general-purpose applications.

  • Series: UUL
  • Packaging: Tape & Reel (TR)
  • Diameter: 0.315 inches (8.00mm)
  • Height - Seated (Max): 0.413 inches (10.50mm)
  • Standard Package: 500
  • Capacitance: 47 microfarads
  • Tolerance: +/-20%
  • Voltage - Rated: 50 volts
  • Polarization: Polarized
  • Surface Mount Land Size: 0.327 inches L x 0.327 inches W (8.30mm x 8.30mm)
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Operating Temperature: -40°C ~ 105°C
  • REACH: Unaffected
  • HTSUS: 8532.22.0020
  • Manufacturer: Nichicon
  • Ripple Current - Low Frequency: 92 mA @ 120 Hz
  • Ripple Current - High Frequency: 138 mA @ 10 kHz
