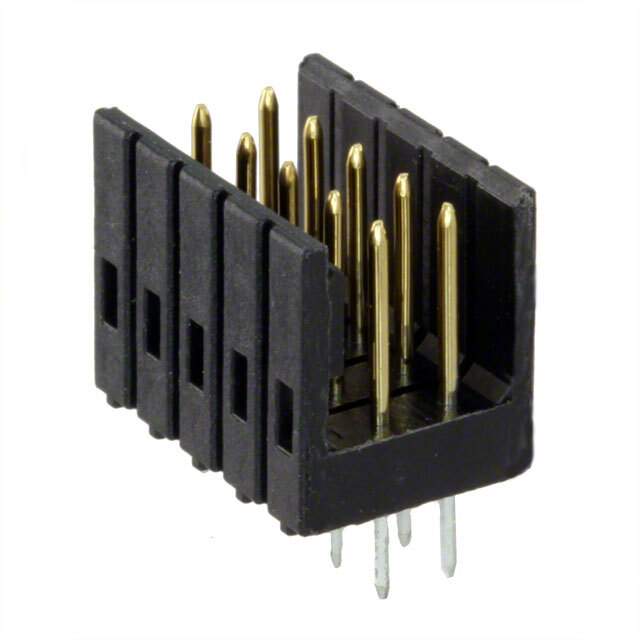

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 2 Wall
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.394" (10.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 118.1µin (3.00µm)
Base Product Number 826469
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 826469-5-ND,A121808
Standard Package 175
Win Source Part Number 1332960-826469-5
Ultra Librarian 3D Model Ultra Librarian 826469-5 CAD Model

Description

TE Connectivity AMP Connectors presents a high-quality male pin header, which is ideal for various applications.

  • Win Source part number: 1332960-826469-5
  • Style: Board-to-Board or Cable
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 3.90µin (0.099µm)
  • Contact Finish-Post: Tin
  • Contact Finish Thickness-Post: 118.1µin (3.00µm)
  • Shrouding: Shrouded-2 Wall
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Operating Temperature Range: -55°C to 105°C
  • RoHS compliant: Yes
