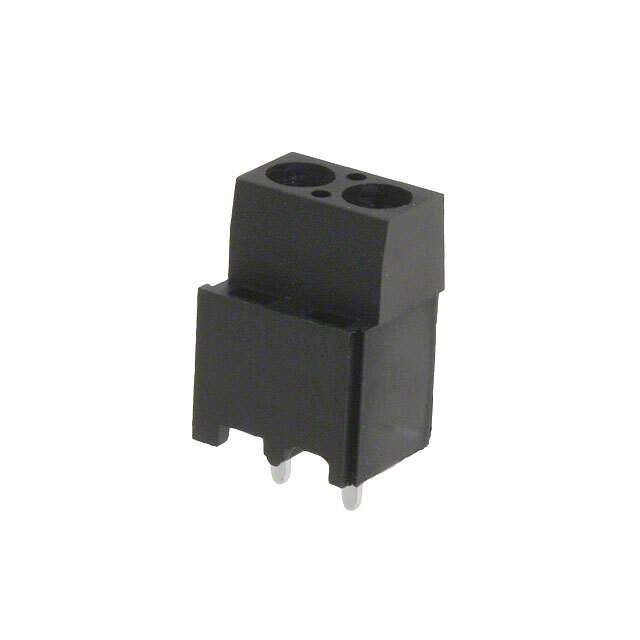

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Number of Levels 1
Positions Per Level 2
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 17.5 A
Voltage 300 V
Wire Gauge 12-30 AWG
Mounting Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Black
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Brass - Nickel Plated
Torque - Screw 0.79 Nm (7.0 Lb-In)
Screw Thread M3
Base Product Number 796949
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -796949-2-SI,7969492
Standard Package 300
Win Source Part Number 1332152-796949-2
Ultra Librarian 3D Model Ultra Librarian 796949-2 CAD Model

Description

The TE Connectivity AMP Connectors 1332152-796949-2 is a black wire-to-board terminal block with interlocking features and a pitch of 0.200 inches (5.08mm).

  • Positions per Level: 2
  • Levels: 1
  • Wire Gauge: 12-30 AWG
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Contact Material: Brass with Tin plating
  • Clamp Material: Brass with Nickel plating
  • Screw Material: Brass with Nickel plating
  • Screw Thread: M3
  • Torque Screw: 0.79 Nm (7.0 Lb-In)
  • Voltage Rating: 300V
  • Current Rating: 17.5A
  • Mounting Type: Through Hole
  • Compliance: ROHS3 Compliant
  • Standard Package: 300
