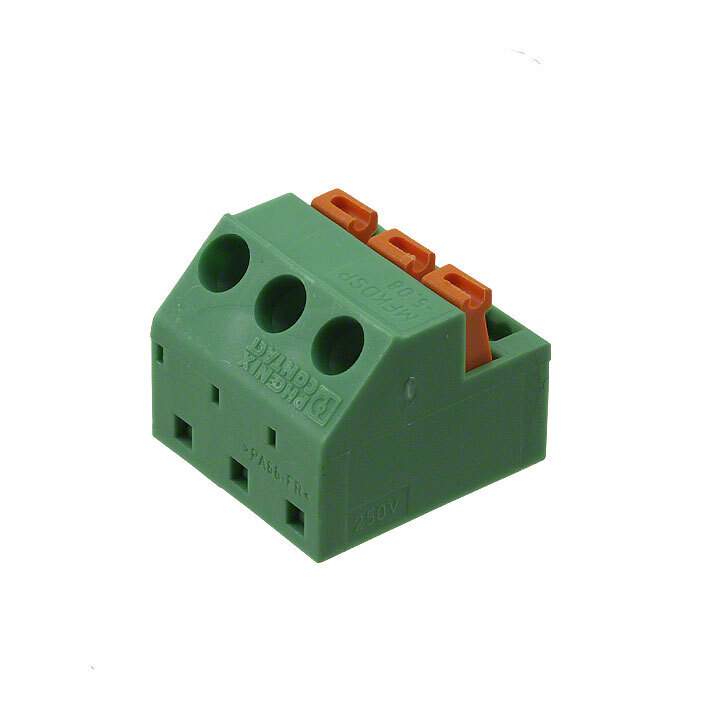

1790296 Real Image
Same model may have multiple batches, images only for reference.

1790296

Part No 1790296
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Wire-To-Board Terminal Block, 3, 250 V, 12 A, 22 Awg, 18 Awg, 1.5 Mm Rohs Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black, Green
Contact Material Copper
Contact Plating Tin
Current 3.6 A
Current Rating 12 A
Flammability Rating UL94 V-2
Height 16.1 mm
Housing Color Green
Housing Material Nylon
Lead Free Lead Free
Length 10 mm
Max Current Rating 12 A
Mount Through Hole
Number of Circuits 3
Number of Contacts 3
Number of Levels 1
Number of Pins 3
Number of Positions 3
Number of Positions Per Level 3
Number of Rows 1
Pitch 5.08 mm
RoHS Compliant
Termination Screwless
Voltage 300 V
Voltage Rating 320 V
Weight 3.61 g
Width 16.2 mm
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 24 AWG
Win Source Part Number 1124566-1790296
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1790296 CAD Model

Description

The Phoenix Contact Terminal Block is a screwless, 3-position, 1-level block that is made of nylon housing material.

  • Voltage Rating: 320 V
  • Current Rating: 12 A
  • Contact Material: Copper
  • Contact Plating: Tin
  • Height: 16.1 mm
  • Width: 16.2 mm
  • Length: 10 mm
  • Weight: 3.61 g
  • Pitch: 5.08 mm
  • Color: Black and Green
  • Maximum Wire Gauge: 22 AWG
  • Minimum Wire Gauge: 24 AWG
  • RoHS: Compliant
  • Flammability Rating: UL94 V-2
  • Lead-Free: Yes
  • Mounting: Through Hole
