Same model may have multiple batches, images only for reference.

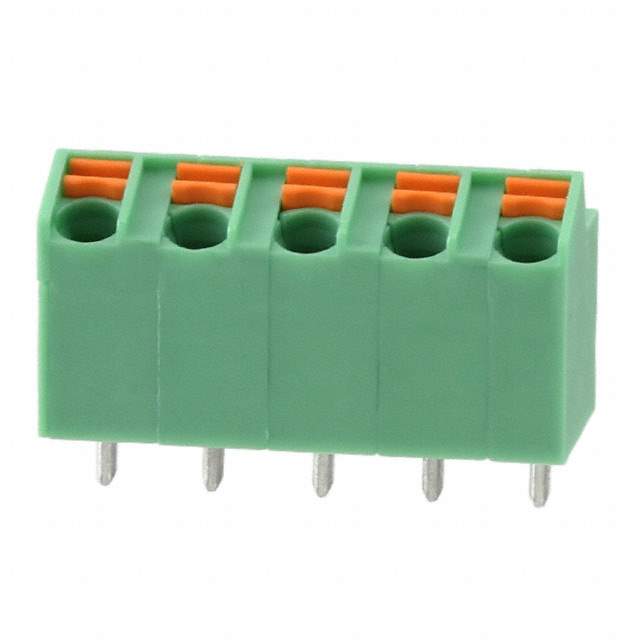

1752243 Real Image
Same model may have multiple batches, images only for reference.

1752243

Part No 1752243
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Wire-To-Board Terminal Block, 5, 320 V, 9 A, 24 AWG, 16 AWG, 1.5 mm RoHS Compliant: Yes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CB, VDE, cULus
Color Green
Contact Material Copper
Contact Plating Tin
Current 10 A
Current Rating 9 A
Depth 12.4 mm
Gender Male
Housing Color Green
Housing Material Nylon
Length 24.1 mm
Material Polyamide
Mount Through Hole
Number of Contacts 5
Number of Levels 1
Number of Positions 5
Number of Positions Per Level 5
Number of Rows 1
Orientation Right Angle
Packaging Bulk
Pitch 5 mm
RoHS Compliant
Schedule B 8536904000
Stripping Length 15 mm
Termination Screwless
Voltage 300 V
Voltage Rating 320 V
Width 10 mm
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Win Source Part Number 1114901-1752243
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1752243 CAD Model

Description

The 1752243 terminal block from Phoenix Contact is a screwless, through-hole mountable device designed for use in various electronic circuits.

  • Positions Loaded: 5
  • Levels: 1
  • Pitch: 5mm
  • Current Rating: 9A
  • Contact Material: Copper
  • Contact Plating: Tin
  • Voltage Rating: 320V
  • Maximum Wire Gauge: 26 AWG
  • Housing Material: Nylon
  • Housing Color: Green
  • Polyamide Material: Yes
  • RoHS Compliant: Yes
  • Approvals: CB, VDE, and cULus
  • Length: 24.1mm
  • Width: 10mm
  • Depth: 12.4mm
