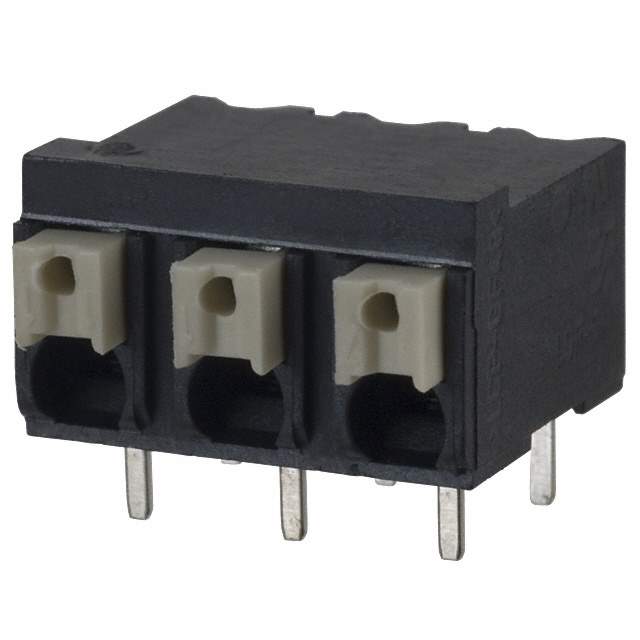

1824820000 Real Image
Same model may have multiple batches, images only for reference.

1824820000

Part No 1824820000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description LCP Push-In Connection Terminal Block, LSF-SMT 5.08 Series (Weidmuller)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, cURus
Color Black
Contact Material Copper
Contact Plating Tin
Current 12 A
Current Rating 10 A
Depth 14.3 mm
Flammability Rating UL94 V-0
Height 8.5 mm
Hole Diameter 1.1 mm
Housing Color Black
Housing Material Polymer
Lead Free Lead Free
Lead Pitch 5.08 mm
Length 14.36 mm
Max Operating Temperature 240 °C
Min Operating Temperature -50 °C
Mount Through Hole
Number of Circuits 3
Number of Contacts 3
Number of Levels 1
Number of Poles 3
Number of Positions 3
Number of Positions Per Level 3
Number of Rows 1
Orientation Right Angle
Pitch 508 mm
Radiation Hardening No
RoHS Compliant
Stripping Length 8 mm
Termination Solder
Voltage 300 V
Voltage Rating 300 V
Voltage Rating (AC) 300 V
Width 8.5 mm
Wire/Cable Gauge 14 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Win Source Part Number 1112365-1824820000
Categories Terminal Blocks
Manufacturer Weidmuller
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1824820000 CAD Model

Description

The Weidmuller 1824820000 is a terminal block that has 3 positions and 1 level.

  • Pitch: 508 mm
  • Color: black
  • Row Count: 1
  • Termination: solder
  • Contact Material: copper
  • Voltage Rating: 300V
  • Current Rating: 10A
  • Contact Count: 3
  • Length: 14.36 mm
  • Housing Material: polymer
  • Approvals: CSA and cURus
  • Supply and Demand Status: limited
