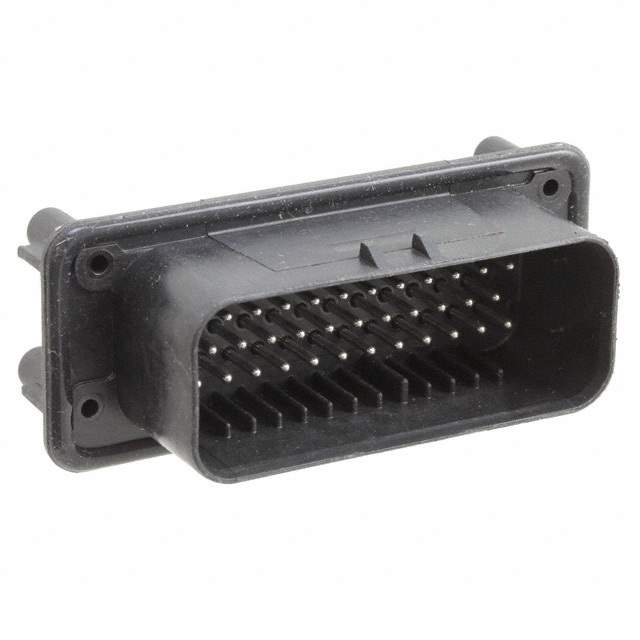

776231-1 Real Image
Same model may have multiple batches, images only for reference.

776231-1

Part No 776231-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 35POS 4MM / Connector Header Panel Mount, Through Hole 35 position 0.157" (4.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPSEAL
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.157" (4.00mm)
Number of Positions 35
Number of Rows 3
Row Spacing - Mating 0.157" (4.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Shape Circular
Contact Finish - Mating Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Mounting Flange, Sealed
Temperature Range - Operating -40°C ~ 105°C
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications Automotive, Industrial
Base Product Number 776231
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names -776231-1-LSI,-776231-1-SI,776231-1-ND,7762311,-776231-1-CSI,A106461
Standard Package 32
Win Source Part Number 1024314-776231-1
Ultra Librarian 3D Model Ultra Librarian 776231-1 CAD Model

Description

The TE Connectivity AMP Connectors 1024314-776231-1 is a product that belongs to the Connectors, Interconnects category.

  • Product Series: AMPSEAL
  • Connector Type: Header
  • Features: Mounting Flange, Sealed
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Package: 32 Units
  • Fake Product Threat: 71%
  • Supply/Demand Status: Balanced
  • Voltage Rating: 250VAC
  • Temperature Range: -40°C ~ 105°C
  • REACH: Affected
  • HTSUS: 8536.69.4040
