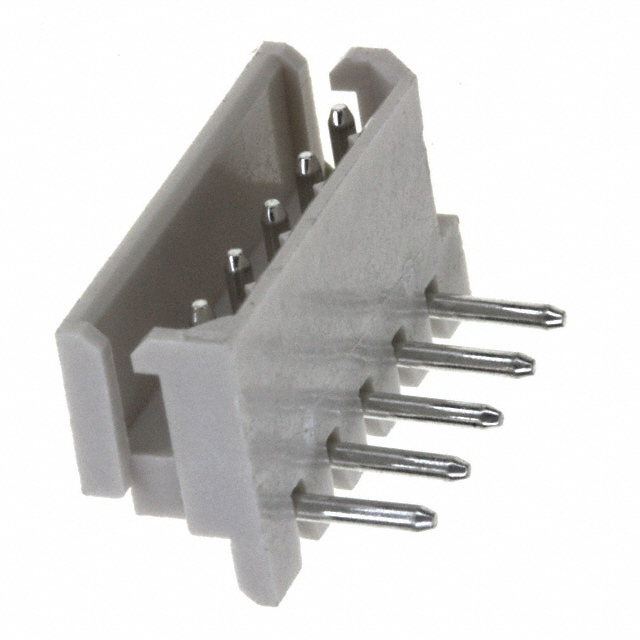

22-05-7055

Name: 22-05-7055
Brand: Molex, LLC
SKU: 540349
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	22-05-7055
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	Vertical and Right Angle Header and Receptacle. \| CONN HEADER R/A 5POS 2.5MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	Through Hole, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.138" (3.50mm)
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.193" (4.90mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	160.0μin (4.06μm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Contact Finish Thickness - Post	160.0μin (4.06μm)
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1123037-22-05-7055
Manufacturer Homepage	www.molexkits.com
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian 22-05-7055 CAD Model

Description

This component is packaged in bulk and has five positions.

Package: Bulk
Positions: Five
Mounting Style: Through-hole, right-angle
Connector Type: Male pin header
Contact Material: Brass
Contact Finish (Mating & Post): Tin, 160.0μin (4.06μm) thickness
Shrouding: Shrouded-4 wall
Pitch-Mating: 0.098" (2.50mm)
Applications: Automotive, general purpose, industrial, medical, and telecommunications
