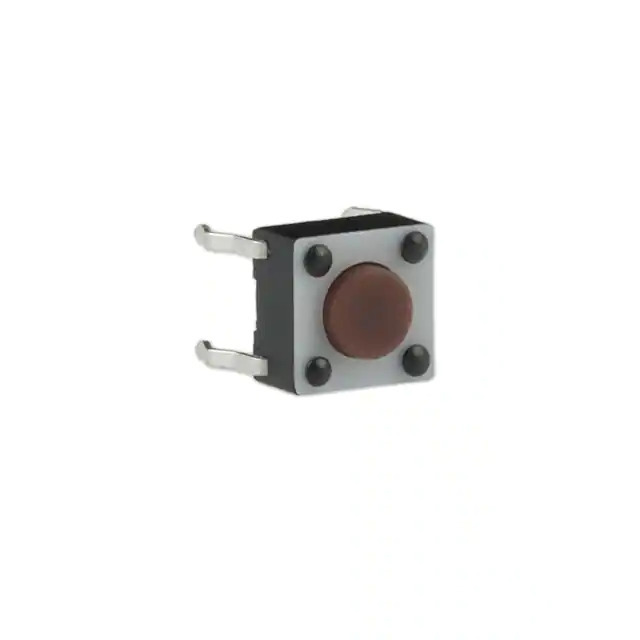

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL1105
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 4.30mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 100gf
Ingress Protection -
Features -
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number TL1105
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376578-TL1105F100Q
Ultra Librarian 3D Model Ultra Librarian TL1105F100Q CAD Model

Description

The TL1105F100Q is a tactile switch from E-Switch.

  • Mounting Type: Through-Hole
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Height: 4.30mm
  • Actuator Travel: 0.25mm
  • Mechanical Life: 100,000 cycles
  • Contact Rating: 0.05A @ 12VDC
  • Operating Force: 100gf
  • Illumination: Non-Illuminated
  • Termination Style: PC Pin
  • Operating Temperature: -20°C to 70°C
  • Actuator Material: Polyamide (PA) and Nylon
