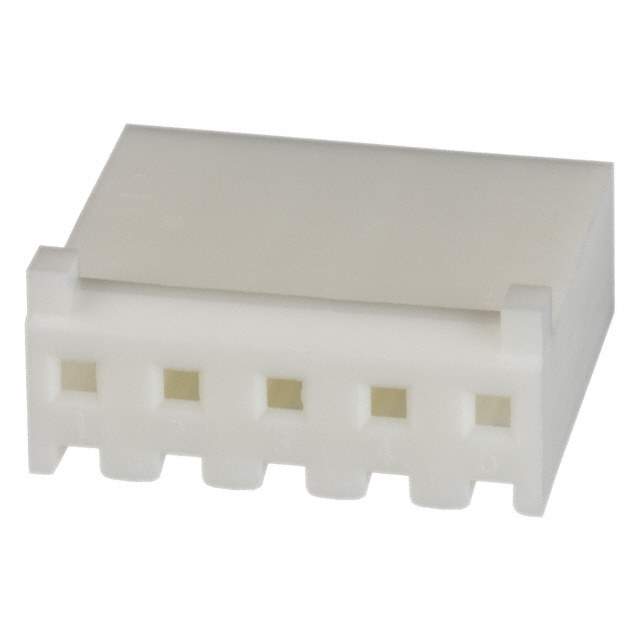

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series SL-156
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 5
Pitch 0.156" (3.96mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Features Polarizing Key
Note Contacts Not Included
Base Product Number 770849
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names A24114,-770849-5-SI,770849-5-ND,7708495,2266-770849-5
Standard Package 500
Win Source Part Number 983736-770849-5
Ultra Librarian 3D Model Ultra Librarian 770849-5 CAD Model

Description

This TE Connectivity AMP Connectors Rectangular Connector Housing is a high-quality component designed for use in free-hanging (in-line) applications.

  • Pitch: 0.156 inches (3.96mm)
  • Keying: Polarizing Key
  • Color: Natural
  • Positions: 5
  • Contact Type: Female Sockets
  • Contact Termination: Crimp
  • Standard Package: 500
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Popularity: Low
