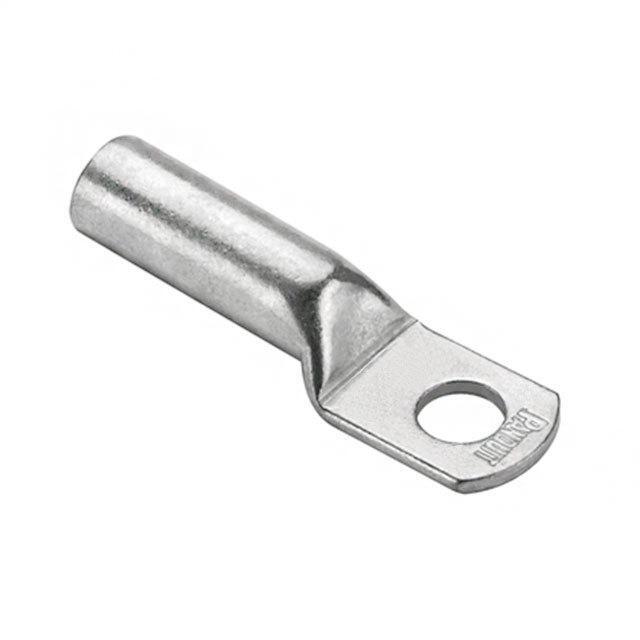

Same model may have multiple batches, images only for reference.

LCMB150-20-X

Name: LCMB150-20-X
Brand: Panduit Corp
SKU: 787303
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LCMB150-20-X
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	One Hole Metric Conductor Long Barrel 150Mm> 2R 120Mm> Class 5F/6F M20 Stud Hole / CONN TERM RECT RING 150MM #M20
Datasheet	LCMB150-20-X Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Panduit Corp
Series	LCMB
Packaging	Bulk
Terminal Type	Ring, Tubular
Stud/Tab Size	M20 Stud
Terminal Style	Single Stud Hole
Tab Thickness	0.169" (4.29mm)
Length - Overall	4.075" (103.51mm)
Width - Outer Edges	1.201" (30.51mm)
Mounting	Free Hanging (In-Line)
Termination	Crimp, Barrel
Wire Gauge	150mm2
Insulation	Non-Insulated
Contact Finish	Tin
Contact Material	Copper
Diameter - Barrel ID	0.650" (16.51mm)
Diameter - Barrel OD	0.827" (21.01mm)
Diameter - Ring ID	0.866" (22.00mm)
Win Source Part Number	787303-LCMB150-20-X
Popularity	Medium
Supply and Demand Status	Limited
Introduction Date	January 01, 2000
ECCN	EAR99
Country of Origin	India
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian LCMB150-20-X CAD Model

Alternative Products

Description

The Panduit Corp electronic component is a medium-popularity product that belongs to the LCMB series. It has a crimp, barrel termination, and a contact finish of tin.

Series: LCMB
Termination: Crimp, Barrel
Contact Finish: Tin
Wire Gauge: 150mm2
Contact Material: Copper
Mounting: Free Hanging (In-Line)
Terminal Style: Single stud hole
Diameter - Barrel ID: 0.650" (16.51mm)
Diameter - Barrel OD: 0.827" (21.01mm)
Diameter - Ring ID: 0.866" (22.00mm)
Tab Thickness: 0.169" (4.29mm)
Width: 1.201" (30.51mm)
Length: 4.075" (103.51mm)
Insulation: Non-insulated
Stud/Tab Size: M20 Stud
EOL Date: 2029
