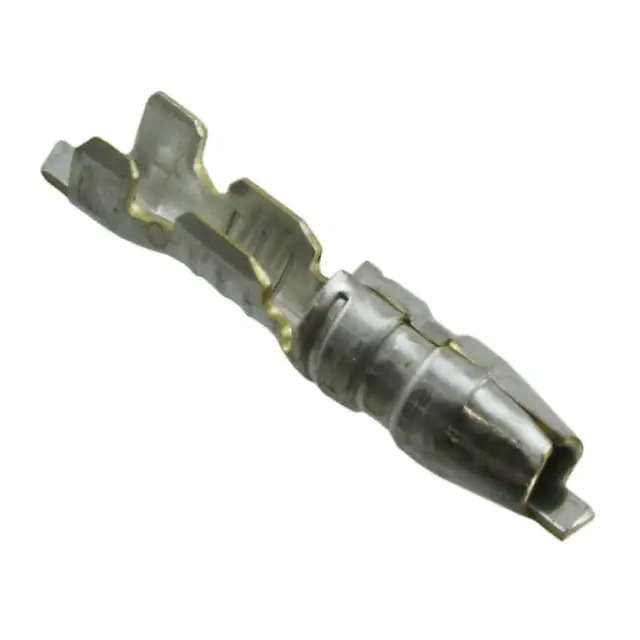

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Barrel, Bullet Connectors
Mfr TE Connectivity AMP Connectors
Series Shur-Plug
Package Tape & Reel (TR)
Product Status Active
Terminal Type Male, Pin (Plug)
Diameter - Barrel 0.156" (3.96mm)
Wire Gauge 16-20 AWG
Length - Overall 0.710" (18.03mm)
Length - Barrel 0.350" (8.89mm)
Insulation Non-Insulated
Termination Crimp
Features -
Contact Material Brass
Contact Finish Tin
Color -
Insulation Diameter 0.095" ~ 0.115" (2.41mm ~ 2.92mm)
Material - Insulation -
Base Product Number 61388
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363297-61388-1
Ultra Librarian 3D Model Ultra Librarian 61388-1 CAD Model

Description

The 1363297-61388-1 is a barrel, bullet connector from TE Connectivity AMP Connectors.

  • Terminal Gender: Male Pin (Plug)
  • Termination Type: Crimp
  • Contact Material: Brass
  • Contact Finish: Tin
  • Wire Gauge: 16 to 20 AWG
  • Insulation: Non-Insulated
  • Mating Area: Serrated
