Same model may have multiple batches, images only for reference.

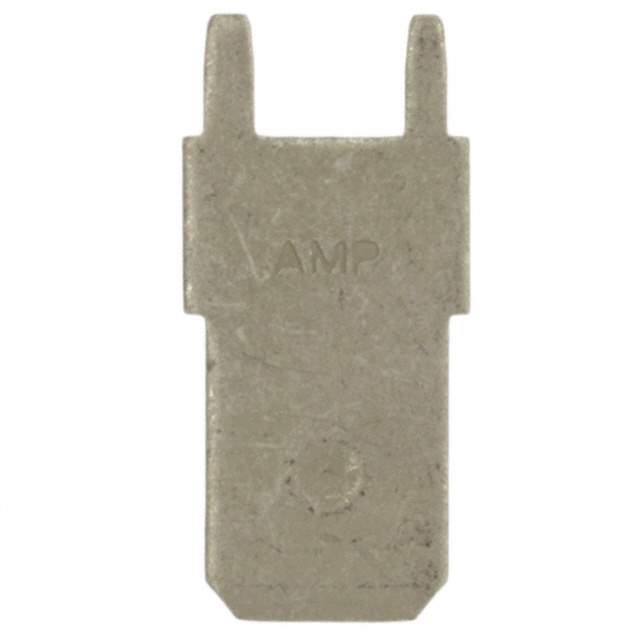

62409-1 Real Image
Same model may have multiple batches, images only for reference.

62409-1

Part No 62409-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC TAB 0.250 SOLDER  /  0.250" (6.35mm) Quick Connect Male Solder Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Bulk
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.312" (7.92mm)
Length - Overall 0.622" (15.80mm)
Termination Solder
Insulation Non-Insulated
Mounting Type Through Hole
Contact Material Brass
Contact Finish Tin
Base Product Number 62409
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names -62409-1-CSI,-401915186-SI,A24742,62409-1-ND,-62409-1-SI,-401915186-LSI-ND,-62409-1-LSI,-401915186-CSI,-401915186-SI-ND,-401915186-CSI-ND,624091,-401915186-LSI
Standard Package 1
Win Source Part Number 1214344-62409-1
Ultra Librarian 3D Model Ultra Librarian 62409-1 CAD Model

Description

This male quick disconnect connector is a part of the Faston series and is designed to provide secure and reliable connections.

  • Terminal Type: Standard
  • Termination: Solder
  • Contact Finish: Tin
  • Material: Brass
  • Insulation: Non-Insulated
  • Tab Width: 0.250 inches (6.35mm)
  • Tab Length: 0.312 inches (7.92mm)
  • Overall Length: 0.622 inches (15.80mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Mounting: Through-Hole
  • Packaging: Bulk
