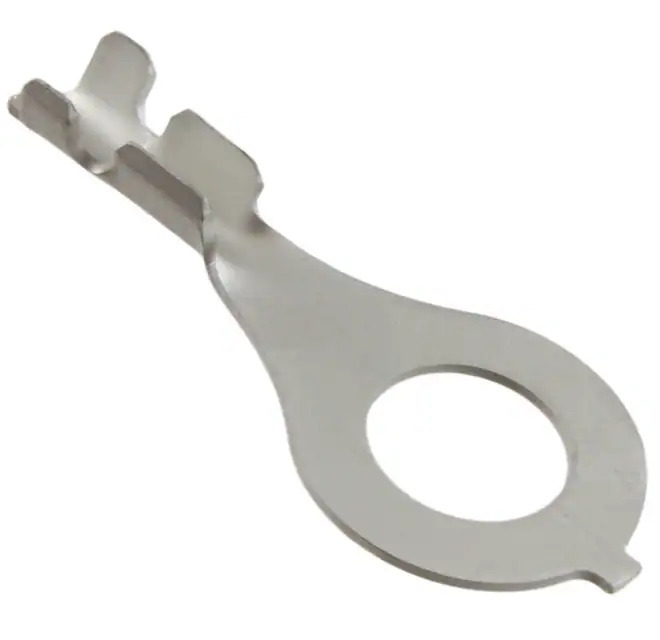

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Oval
Stud/Tab Size 1/4 Stud
Thickness 0.020" (0.51mm)
Width - Outer Edges 0.468" (11.89mm)
Length - Overall 0.982" (24.94mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.080" ~ 0.120" (2.03mm ~ 3.05mm)
Material - Insulation -
Base Product Number 60700
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364997-60700-2
Ultra Librarian 3D Model Ultra Librarian 60700-2 CAD Model

Description

The 1364997-60700-2 is a ring connector from TE Connectivity AMP Connectors.

  • Wire Gauge: 16-20 AWG
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Overall Length: 0.982 inches (24.94mm)
  • Termination: Crimp
  • Mounting Type: Free Hanging (In-Line)
  • Series: Faston
  • Base Product Number: 60700
  • Product Status: Active
  • Package Type: Tape & Reel (TR)
  • Contact Material: Brass
  • Stud Size: 1/4
