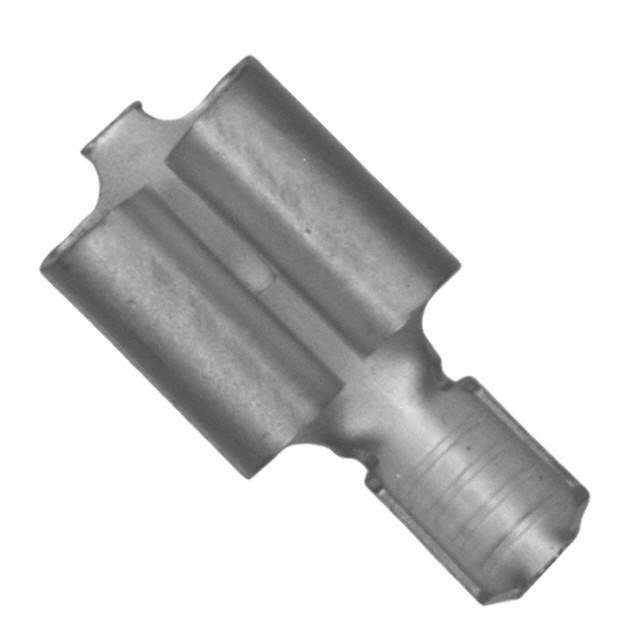

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.205" (5.21mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.615" (15.62mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.130" ~ 0.180" (3.30mm ~ 4.57mm)
Base Product Number 42233
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 42233-2-ND,A27682TR,A27682-ND,422332,A27682CT,-42233-2-SI,A27682
Standard Package 16,000
Win Source Part Number 1333539-42233-2
Ultra Librarian 3D Model Ultra Librarian 42233-2 CAD Model

Description

The quick disconnect connector from TE Connectivity AMP Connectors is a high-quality connector.

  • Termination: Crimp
  • Wire Gauge: 14-18 AWG
  • Gender: Female
  • Contact Material: Brass
  • Insulation: Non-Insulated
  • Tab Width: 0.205" (5.21mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.250" (6.35mm)
  • Packaging: Reel - TR
  • Standard Package: 16,000
  • Product Status: Active
