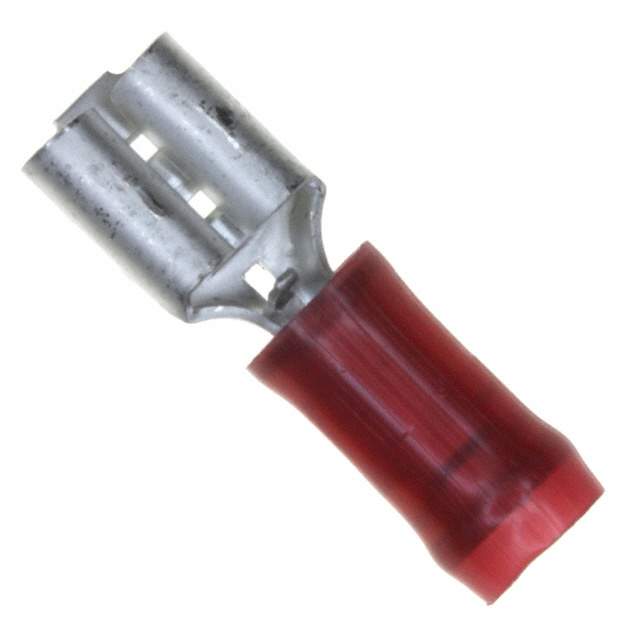

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston, PIDG
Package Bulk
Terminal Type Standard
Gender Female
Tab Width 0.205" (5.21mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.800" (20.32mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Mating End Insulated
Mounting Type Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.135" (3.43mm)
Base Product Number 640909
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names A09047,2266-640909-1,-640909-1-SI,6409091,-579266-000-SI-ND,-579266-000-SI
Standard Package 1,000
Win Source Part Number 1204778-640909-1
Ultra Librarian 3D Model Ultra Librarian 640909-1 CAD Model

Description

The TE Connectivity AMP Connectors 640909-1 is a female quick disconnect connector used in various electronic devices.

  • MSL Level: Unlimited
  • Temperature Range: -40°C to 105°C
  • Manufacturer: TE Connectivity AMP Connectors
  • Termination: Crimp
  • Wire Gauge: 18-22 AWG
  • Application: Reliable and efficient component that can be used in a wide range of electronic devices
