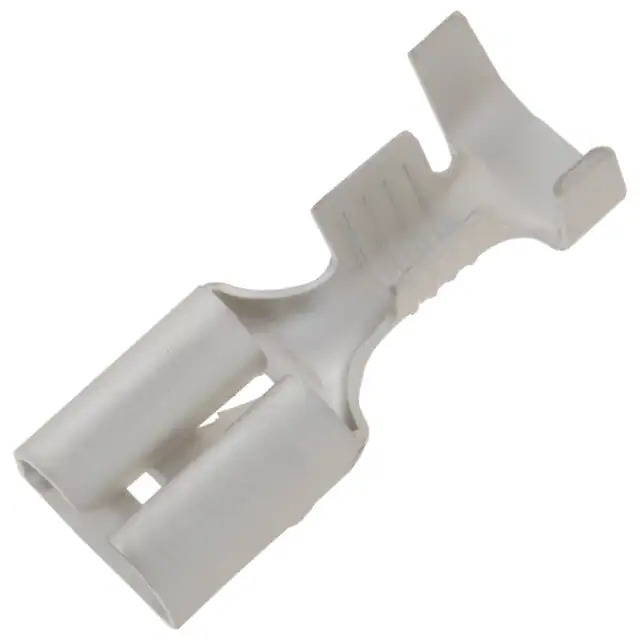

60253-2 TE Connectivity
Same model may have multiple batches, images only for reference.

60253-2

Part No 60253-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 12-16AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 12-16 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Length - Overall 0.750" (19.05mm)
Termination Crimp
Wire Gauge 12-16 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter -
Base Product Number 60253
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364722-60253-2
Ultra Librarian 3D Model Ultra Librarian 60253-2 CAD Model

Description

The 1364722-60253-2 is a quick connect terminal from TE Connectivity AMP Connectors.

  • Category: Connectors and Interconnects
  • Segment: Terminals - Quick Connects, Quick Disconnect Connectors
  • Series: Fastin-Faston
  • Termination: Crimp
  • Wire Gauge: 12-16 AWG
  • Overall Length: 0.750 inches (19.05mm)
  • Insulation: Non-Insulated
  • Contact Finish: Tin
  • Contact Material: Brass
  • Terminal Type: Standard
  • Gender: Female
  • Tab Width: 0.250 inches (6.35mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Tab Length: 0.305 inches (7.75mm)
  • Insulation Diameter: Not Specified
  • Status: Active
  • HTSUS Code: 8536.90.4000
  • ECCN: EAR99
  • Mounting Type: Free Hanging (In-Line)
  • Packaging: Tape and Reel
