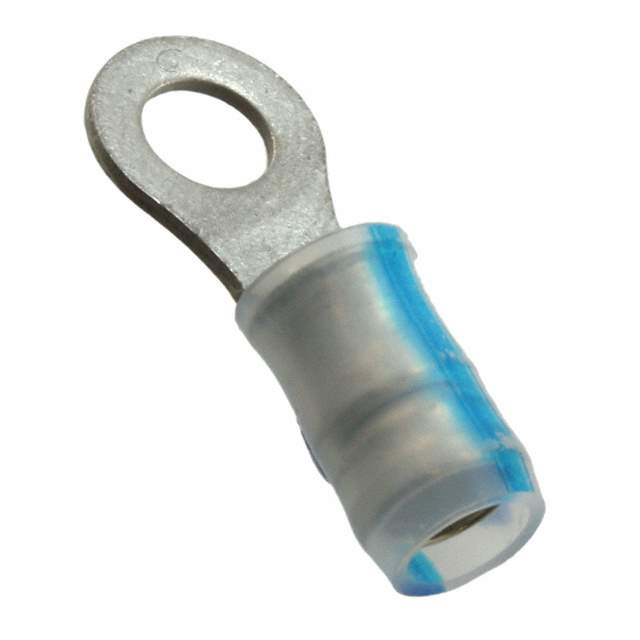

53417-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series PIDG
Package Bulk
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.312" (7.92mm)
Length - Overall 0.844" (21.44mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Features Radiation Resistant, Serrated Termination
Color Natural, Blue Stripe
Contact Material Copper
Contact Finish Tin-Lead
Insulation Diameter 0.105" ~ 0.150" (2.67mm ~ 3.81mm)
Material - Insulation Polyvinylidene Fluoride (PVDF)
Base Product Number 53417
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 534171,53417-1-ND,A27298
Standard Package 1,000
Win Source Part Number 1013617-53417-1
Ultra Librarian 3D Model Ultra Librarian 53417-1 CAD Model

Description

This electronic component is a ring connector from the PIDG series manufactured by TE Connectivity AMP Connectors.

  • Termination: crimp termination
  • Contact Finish: tin-lead
  • Package: bulk
  • Standard Package: 1,000
  • Terminal Type: circular terminal
  • Thickness: 0.031 inches (0.79mm)
  • Width: 0.312 inches (7.92mm)
  • Overall Length: 0.844 inches (21.44mm)
  • Insulation Diameter: 0.105 inches to 0.150 inches (2.67mm to 3.81mm)
  • Stud/Tab Size: 8 stud
  • Mounting Type: free hanging (in-line)
  • ECCN: EAR99
  • REACH: affected
  • HTSUS: 8536.90.4000
  • Base Product Number: 53417
  • RoHS: non-compliant
