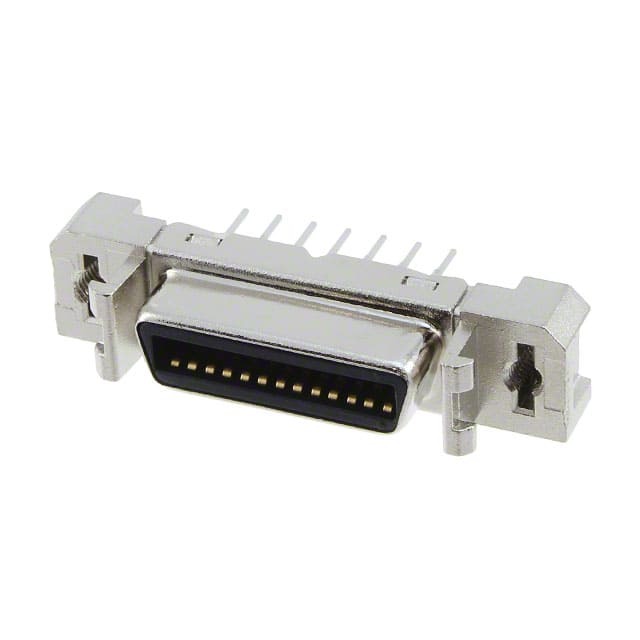

5917334-4
Same model may have multiple batches, images only for reference.

5917334-4

Part No 5917334-4
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN RCPT 26POS PCB SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr TE Connectivity
Series CHAMP .050 II
Package Bulk
Product Status Obsolete
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 26
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Termination Solder
Flange Feature Housing/Shell (M2.6)
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 11.8µin (0.30µm)
Base Product Number 5917334
Standard Package 960 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856614-5917334-4
Ultra Librarian 3D Model Ultra Librarian 5917334-4 CAD Model

Description

The TE Connectivity 856614-5917334-4 is an obsolete product in the Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors category. It is manufactured by TE Connectivity.

  • Series: CHAMP .050 II
  • Positions: 26
  • Feature: Board Lock
  • Connector Type: Receptacle
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 11.8μin (0.30μm)
  • Package: Bulk
  • Standard Package: 960 pieces
  • Connector Style: Outer Shroud Contacts
  • Housing/Shell Feature: Flange (M2.6)
  • Mounting Type: Panel Mount, Through Hole
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.69.4040
  • Base Product Number: 5917334
