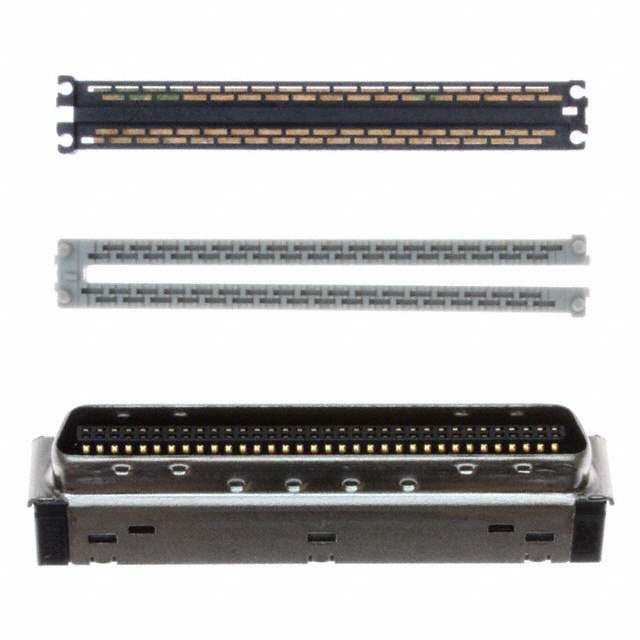

10168-6010EC 3M
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer 3M
Category Connectors, Interconnects > D-Sub, D-Shaped Connectors > Centronics Connectors
Packaging Bulk
Part Status Active
Connector Type Plug
Number of Positions 68
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Termination IDC
Features Shielded
Ultra Librarian 3D Model Ultra Librarian 10168-6010EC CAD Model

Description

• Wiper-on-wiper contact for reliable repetitive plugging

• MDR digital LCD interface as a 20 or 26 contact connector

• IEEE 1284C Interface as a 36 contact connector

• Accepts a wide variety of cable constructions including flat, round, twisted pair and twinax cables

• Accepts a wide variety of shielded junction shells

• Contacts: 14, 20, 26, 36, 40, 50, 68, 80 and 100

• RoHS Compliant. See the Regulatory Information Appendix (RIA) in the “RoHS compliance” section of www.3Mconnector.com for compliance information (RIA E1 & C1 apply)
