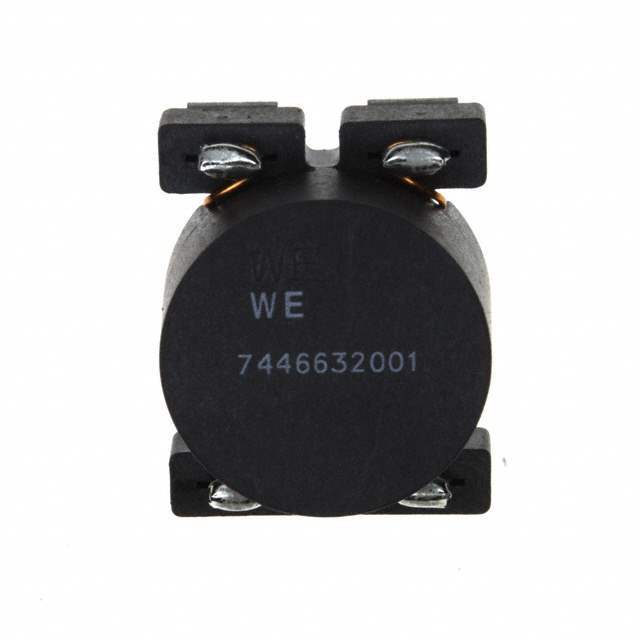

7446632001Würth Elektronik
Same model may have multiple batches, images only for reference.

7446632001

Part No 7446632001
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1MH 3A 2LN SMD
Datasheet
7446632001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207764-7446632001
Manufacturer Würth Elektronik
Category Filters- Common Mode Chokes
Series WE-LF
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 10 kHz
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.917" L x 0.728" W (23.30mm x 18.50mm)
Ultra Librarian 3D Model Ultra Librarian 7446632001 CAD Model

Description

1 mH @ 10 kHz 2 Line Common Mode Choke Surface Mount 3A DCR 60mOhm
