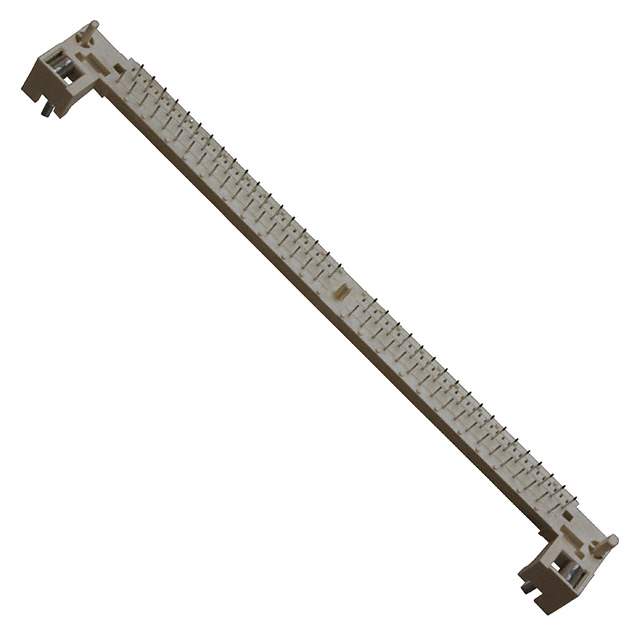

5822134-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Micro-Edge
Packaging Tube
Connector Style SIMM
Number of Positions 72
Memory Type RAM
Standards MO-116
Mounting Through Hole, 22° Angle
Features Board Guide, Latches
Mounting Feature Normal, Standard - Top
Contact Finish Tin
Contact Finish Thickness 200μin (5.08μm)
Win Source Part Number 766288-5822134-3
Popularity Medium
Supply and Demand Status Limited
Family Name 5822134
Introduction Date January 07, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5822134-3 CAD Model

Description

The 766288-5822134-3 is a Micro-Edge series connector manufactured by TE Connectivity AMP Connectors.

  • Positions: 72
  • Features: Board Guide, Latches
  • Style: SIMM
  • Mounting Angle: 22°
  • Mounting: Through-hole
  • Packaging: Tube
  • Contact Finish: Tin
  • Contact Finish Thickness: 200μin (5.08μm)
  • Standards: MO-116
  • Estimated EOL Date: 2026
  • Halogen-Free: Yes
  • Alternative Parts: 15-82-0675
