Products specifications

Category Connectors, Interconnects>USB, DVI, HDMI Connectors>USB, DVI, HDMI Connector Assemblies
Mfr TE Connectivity
Series -
Package Bulk
Connector Type USB-B (USB TYPE-B)
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Type Through Hole
Mounting Feature Vertical
Termination Solder
Features Board Lock
Ingress Protection -
Temperature Range - Operating -55°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A per Contact
Voltage - Rated 30VAC
Mating Cycles 1500
Shielding -
Contact Finish Gold
Shell/Shielding Material Phosphor Bronze
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 5788336
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 144 pcs
Win Source Part Number 1380949-5788336-2
Ultra Librarian 3D Model Ultra Librarian 5788336-2 CAD Model

Description

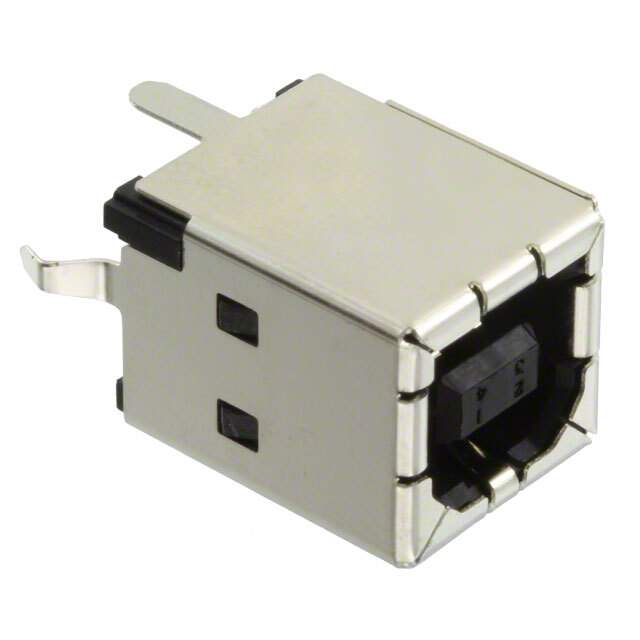

The 1198085 is a USB-B (USB TYPE-B) connector assembly from TE Connectivity.

  • Termination Type: Solder
  • Contact Finish: Gold
  • Application: USB 2.0
  • Contacts: 4
  • Voltage Rating: 30VAC
  • Current Rating: 1A per contact
  • Features: Board Lock
  • Mounting: Vertical
  • Mating Cycle: 1500
  • Temperature Range: -55°C to 85°C
  • Shell/Shielding Material: Phosphor Bronze
  • Insulation Color: Black
  • Mounting Type: Through-Hole
  • Package: Bulk
  • Manufacturer: TE Connectivity
