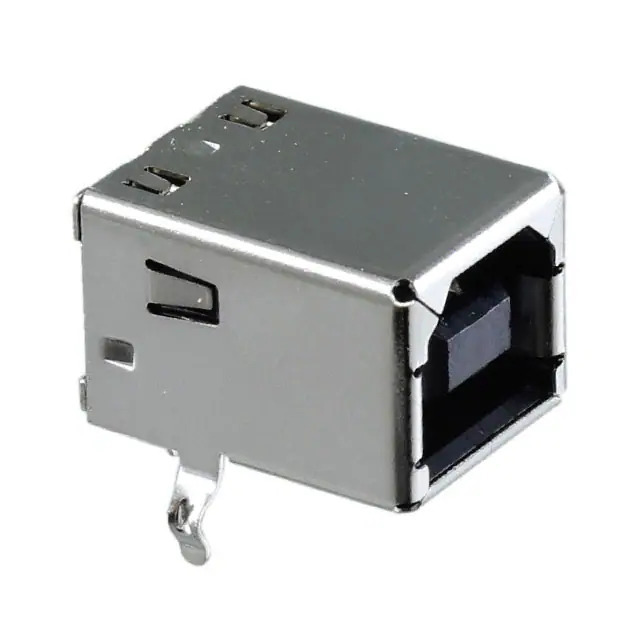

UE27BC54130 Amphenol
Same model may have multiple batches, images only for reference.

UE27BC54130

Part No UE27BC54130
Manufacturer Amphenol
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 TYPEB 4POS R/A / USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Amphenol ICC (Commercial Products)
Series UE27
Package Tray
Product Status Active
Connector Type USB-B (USB TYPE-B)
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Type Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Ingress Protection -
Temperature Range - Operating -40°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1.5A
Voltage - Rated 30VAC
Mating Cycles 1500
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Copper Alloy, Steel
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number UE27
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364358-UE27BC54130
Ultra Librarian 3D Model Ultra Librarian UE27BC54130 CAD Model

Description

The Amphenol ICC (Commercial Products) UE27 USB-B Connector Assembly is a reliable and high-quality connector for USB applications.

  • Connector Type: USB-B
  • Board Lock: Yes
  • Temperature Range: -40°C to 85°C
  • Shielded: Yes
  • Current Rating: 1.5A
  • Termination: Solder
  • Voltage Rating: 30VAC
  • Contact Material: Copper Alloy, Gold Finish
  • Number of Contacts: 4
  • Number of Ports: 1
  • Mounting: Through-Hole, Right-Angle
  • Material Flammability: UL94 V-0
  • Insulation Color: Black
  • Series: UE27
  • Package: Tray
  • Manufacturer: Amphenol ICC (Commercial Products)
