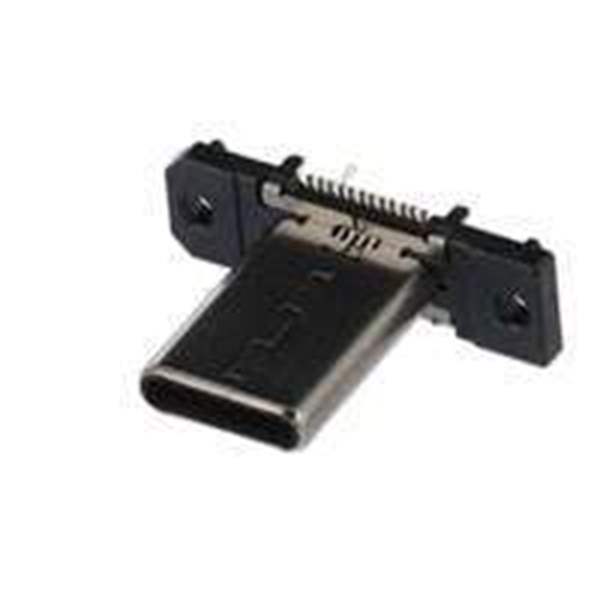

DX07VN24WA2C1568
Same model may have multiple batches, images only for reference.

DX07VN24WA2C1568

Part No DX07VN24WA2C1568
Manufacturer JAE Electronics
Catalog USB, DVI, HDMI Connectors
Description CONN PLUG USB3.1 TYPEC 24POS SMD / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 Position Surface Mount
Datasheet
DX07VN24WA2C1568 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr JAE Electronics
Series DX07
Package Tray
Product Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Plug
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type Surface Mount
Mounting Feature Flange, Vertical
Termination Solder
Features Board Guide, Pick and Place Cap
Ingress Protection -
Temperature Range - Operating -30°C ~ 80°C
Number of Ports 1
Current Rating (Amps) 5A
Voltage - Rated 20VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating -
Insulation Color Black
Base Product Number DX07VN24
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1354236-DX07VN24WA2C1568
Ultra Librarian 3D Model Ultra Librarian DX07VN24WA2C1568 CAD Model

Description

The DX07 series from JAE Electronics offers USB-C (USB TYPE-C) connectors with excellent performance and reliability.

  • Connector Type: USB, DVI, HDMI
  • Contacts: 24
  • Gender: Plug
  • Mounting Type: Surface Mount
  • Features: Flange, Vertical
  • Voltage Rating: 20VAC
  • Current Rating: 5A
  • Contact Finish: Gold
  • Shielded: Yes
  • Product Status: Active
  • Packaging: Tray
  • USB Standard: USB 3.2 Gen 2
  • California Prop 65 Warning: Yes
