Same model may have multiple batches, images only for reference.

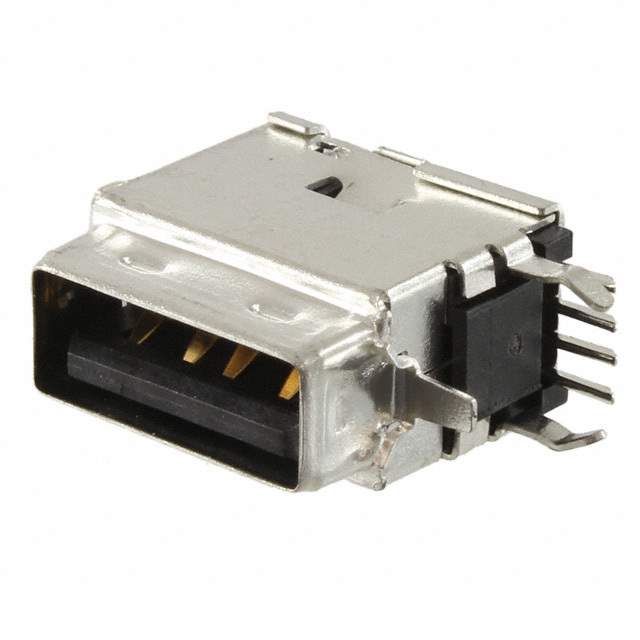

894858002 Real Image
Same model may have multiple batches, images only for reference.

894858002

Part No 894858002
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB R/A TYPE A
Datasheet
894858002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series 89485
Packaging Tray
Connector Type USB - A
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Through Hole, Right Angle
Mounting Feature Vertical
Termination Solder
Features Board Lock
Operating Temperature Range 0°C ~ 50°C
Number of Ports 1
Current Rating 1A per Contact
Voltage Rating DC 750VAC
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 766385-894858002
Popularity Medium
Supply and Demand Status Limited
Family Name 89485
Introduction Date June 21, 2010
ECCN EAR99
Country of Origin China, Hong Kong, Hong Kong
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 894858002 CAD Model

Description

The Molex 89485 series USB-A receptacle connector is a high-quality component for your electronic projects.

  • Current Rating: 1A per contact
  • Applications: USB 2.0
  • Features: Board Lock, Shielded
  • Material Flammability: UL94 V-0
  • Material: Steel
  • Voltage Rating: 750VAC
  • Operating Temperature Range: 0°C to 50°C
  • Contacts: 4
  • Mounting: Through-hole, Right Angle, Vertical
  • Packaging: Tray
  • Manufacturer: Molex, LLC
  • Alternative Parts: A-USB A-E/LP
  • Estimated EOL Date: 2028
