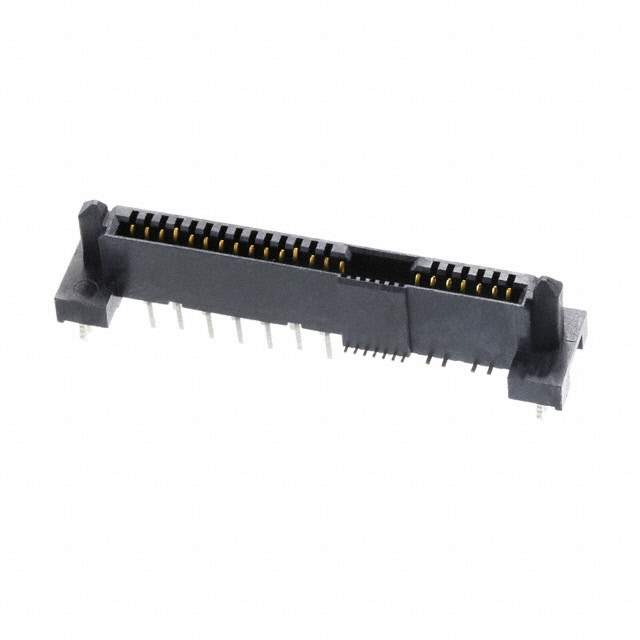

1735104-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr TE Connectivity AMP Connectors
Package Tray
Product Status Obsolete
Connector Style Receptacle
Connector Type SAS
Number of Positions 29
Mounting Type Through Hole
Termination Solder
Features Board Guide, Board Lock
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 1735104
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1735104-1-SI,A108940,2266-1735104-1
Standard Package 540
Win Source Part Number 1116214-1735104-1
Ultra Librarian 3D Model Ultra Librarian 1735104-1 CAD Model

Description

The TE Connectivity AMP Connectors 1735104-1-SI is a pluggable connector with 29 positions. TE Connectivity AMP Connectors manufactures the 1735104-1-SI.

  • Positions: 29
  • Features: Board Guide, Board Lock
  • Connector Type: SAS
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Status: Obsolete
  • Popularity: Low
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
