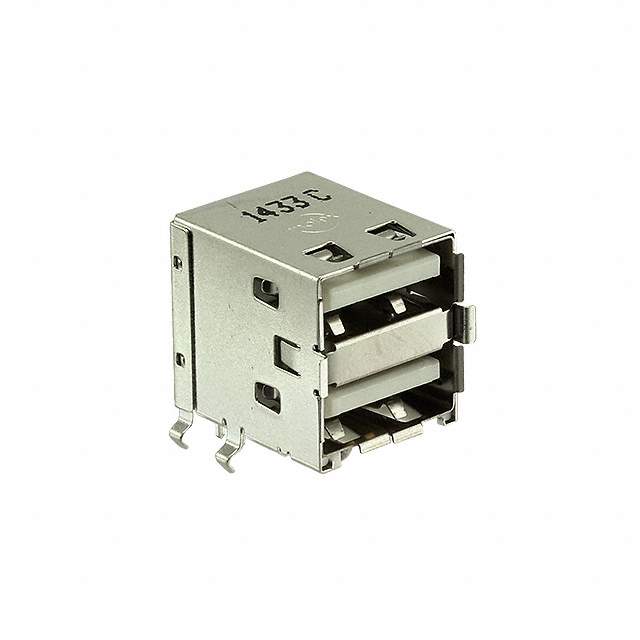

672982091 Real Image
Same model may have multiple batches, images only for reference.

672982091

Part No 672982091
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description USB DUAL STACKED A CONN GOLD
Datasheet
672982091 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series 67298
Packaging Tray
Part Status Obsolete(EOL)
Connector Type USB - A, Stacked
Number of Contacts 8
Gender Receptacle
Mounting Board Edge, Cutout; Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Operating Temperature Range 0°C ~ 50°C
Number of Ports 2
Current Rating 1.5A
Voltage Rating DC 30VDC
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Brass, Steel (SUS 304)
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 764505-672982091
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 672982091 CAD Model

Description

The Molex USB-A stacked receptacle connector is perfect for use in electronic devices.

  • Connector Type: USB-A
  • Features: Board Lock, Shielded
  • Operating Temperature: 0°C to 50°C
  • Current Rating: 1.5A
  • Contacts: 8
  • Shell/Shielding Material: Brass, Steel (SUS 304)
  • Voltage Rating DC: 30VDC
  • Mounting: Board Edge, Cutout, Through Hole, Right Angle
  • Orientation: Horizontal
  • Status: Obsolete (EOL)
  • Insulation Color: Black
  • Supply/Demand Status: Limited
  • Popularity: Medium
