Same model may have multiple batches, images only for reference.

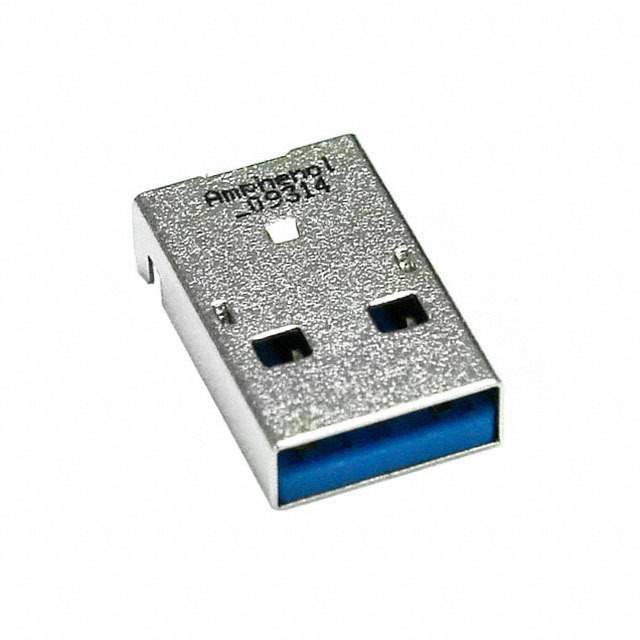

GSB316441CEU Real Image
Same model may have multiple batches, images only for reference.

GSB316441CEU

Part No GSB316441CEU
Manufacturer Amphenol
Catalog USB, DVI, HDMI Connectors
Description CONN PLUG USB3.0 TYPEA 9P SMD RA / USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Plug Connector 9 Position Surface Mount, Right Angle; Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Amphenol ICC (Commercial Products)
Series GSB3
Package Tape & Reel
Connector Type USB-A (USB TYPE-A)
Number of Contacts 9
Gender Plug
Specifications USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Board Guide
Temperature Range - Operating -20°C ~ 60°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.8A
Voltage - Rated 30VAC
Contact Finish Gold
Shell/Shielding Material Steel (SPCC)
Material Flammability Rating UL94 HB
Insulation Color Blue
Base Product Number GSB31
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names GSB316431CEUTR,GSB316431CEUTR-ND,GSB316441CEUCT,GSB316441CEUTR,GSB316431CEUCT,GSB316441CEUDKR,GSB316431CEU,2266-GSB316441CEU,GSB316431CEUCT-ND,GSB316431CEU-ND
Standard Package 650
Win Source Part Number 983543-GSB316441CEU
Ultra Librarian 3D Model Ultra Librarian GSB316441CEU CAD Model

Description

The GSB3 USB-A (USB TYPE-A) connector plug has 9 contacts.

  • Operating Temperature: -20°C ~ 60°C
  • Connector Material: Steel (SPCC)
  • Contact Finish: Gold
  • USB Specification: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
  • Voltage Rating: 30VAC
  • Mounting Feature: Horizontal
  • Mounting Type: Surface Mount, Right-Angle or Through-Hole
