Same model may have multiple batches, images only for reference.

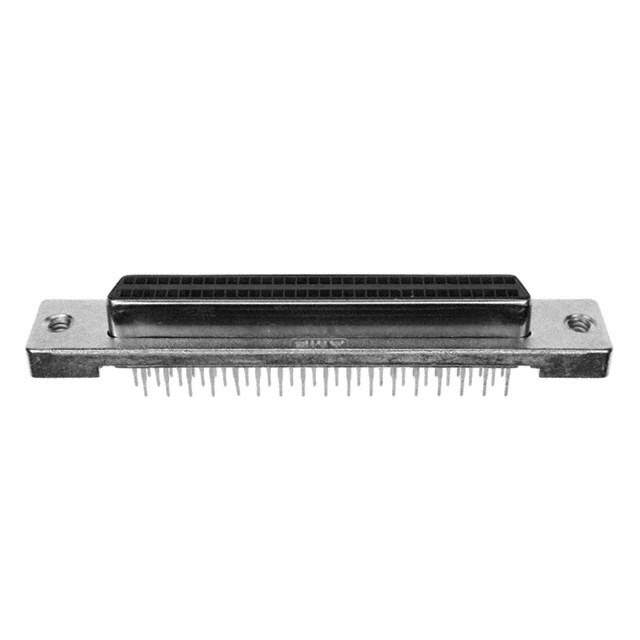

5786555-7 Real Image
Same model may have multiple batches, images only for reference.

5786555-7

Part No 5786555-7
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-TYPE RCPT 68POS VERT
Datasheet
5786555-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPLIMITE .050 III
Packaging Tube
Connector Style D-Type
Connector Type Receptacle, Female Sockets
Number of Positions 68
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Mounting Style Through Hole
Flange Feature Housing/Shell (4-40)
Termination Press-Fit
Features Shielded
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 105°C
Voltage Rating 30V
Current Rating 1A
Color Black
Housing Material Polyphthalamide (PPA)
Contact Material Phosphor Bronze
Win Source Part Number 766187-5786555-7
Popularity Medium
Supply and Demand Status Limited
Family Name 5786555
Introduction Date March 10, 2008
ECCN EAR99
Country of Origin China, Mexico
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5786555-7 CAD Model

Description

The 5786555-7 from TE Connectivity AMP Connectors is a high-quality connector.

  • Connector Type: Receptacle, female sockets
  • Contact Type: Signal
  • Number of Positions: 68
  • Mounting Style: Through hole
  • Popularity: Medium
  • Supply and Demand Status: Limited
