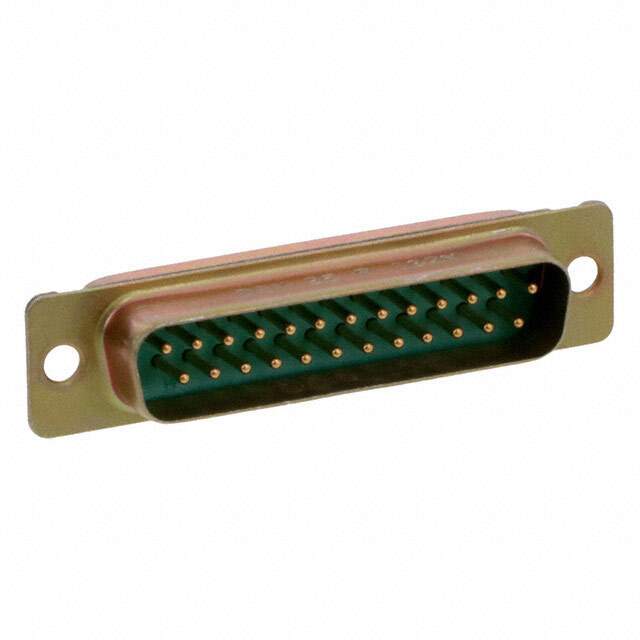

DBM25P032N Real Image
Same model may have multiple batches, images only for reference.

DBM25P032N

Part No DBM25P032N
Manufacturer Amphenol
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 25POS SLDR CUP / 25 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (FCI)
Series DM HE508
Package Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Cadmium Plated
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 7.5A per Contact
Voltage Rating 300V
Contact Form Machined
Dielectric Material Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 155°C
Base Product Number DBM25P0
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.8000
Other Names 609-6128,DBM25P032N-ND
Standard Package 10
Win Source Part Number 1078472-DBM25P032N
Ultra Librarian 3D Model Ultra Librarian DBM25P032N CAD Model

Description

The Amphenol 1078472-DBM25P032N is a connector component with a current rating of 7.5A per contact. This component is manufactured by Amphenol ICC (FCI) and has a Win Source Part Number of 1078472-DBM25P032N. The connector type is plug, male pins and has a contact type of signal. The categories that this component falls under are Connectors, Interconnects>D-Sub Connectors.
