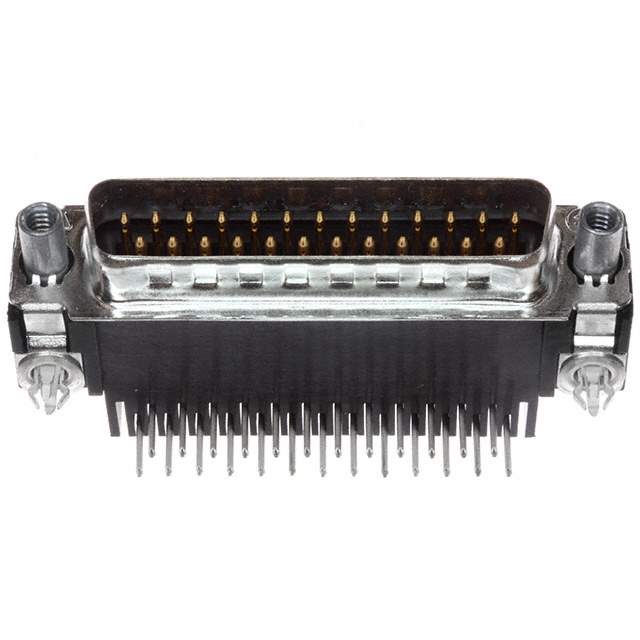

5747834-6 Real Image
Same model may have multiple batches, images only for reference.

5747834-6

Part No 5747834-6
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 25POS R/A SLDR  /  25 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tube
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.590" (14.99mm)
Features Board Lock, Ground Strap, Grounding Indents
Voltage Rating 125V
Color Black
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747834
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 57478346,A35152
Standard Package 10
Win Source Part Number 1199397-5747834-6
Ultra Librarian 3D Model Ultra Librarian 5747834-6 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 is an electronic component that falls under the category of Connectors, Interconnects>D-Sub Connectors. The Win Source Part Number for this product is 1199397-5747834-6. The standard package for this component is 10. It is a through hole, right angle mounting type of connector with a shell size of 3 (DB, B). The current rating for this component is 6A and the voltage rating is 125V.
