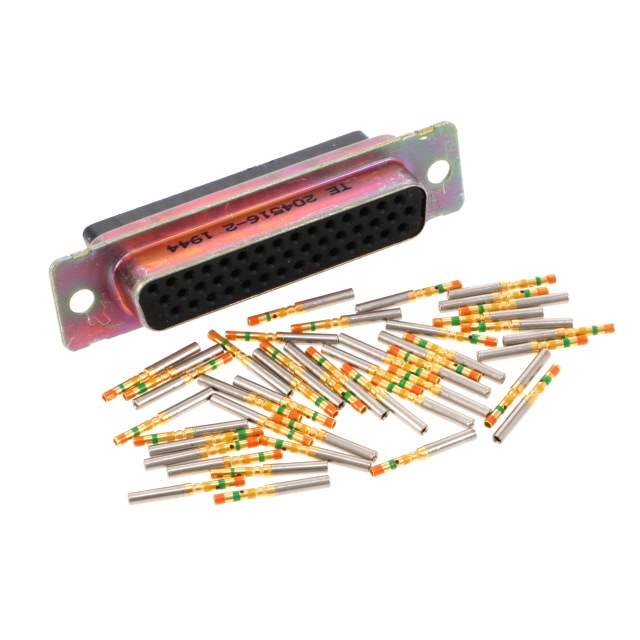

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity Aerospace, Defense and Marine
Series Military, MIL-DTL-24308, AMPLIMITE 90; HD-22
Package Bulk
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 44
Number of Rows 3
Mounting Type Panel Mount
Shell Size, Connector Layout 3 (DB, B) High Density
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Crimp
Shell Material, Finish Steel, Cadmium Plated
Contact Finish Gold
Current Rating (Amps) 7.5A
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 204516
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4030
Other Names 1122-1262-MIL,M24308/2-13F,2266-204516-2,1122-1262,204516-2-ND,M24308/2-13F-MIL,204516-2-MIL,M24308/2-13F-ND
Standard Package 1
Win Source Part Number 1009742-204516-2
Ultra Librarian 3D Model Ultra Librarian 204516-2 CAD Model

Description

The 204516-2 is a connector manufactured by TE Connectivity Aerospace, Defense and Marine.

  • Type: D-sub High-Density Connector
  • Socket Type: Receptacle Female
  • Positions: 44
  • Series: Military, MIL-DTL-24308, AMPLIMITE 90; HD-22
  • Contact Finish: Gold
  • Termination: Crimp
  • RoHS Compliant: No
