Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Cut Tape (CT)
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating (Amps) 4.3A
Current - Saturation 10A
Shielding Unshielded
DC Resistance (DCR) 31mOhm Max
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.730" L x 0.600" W (18.54mm x 15.24mm)
Height - Seated (Maximum) 0.280" (7.11mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130019-74458010
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 74458010 CAD Model

Description

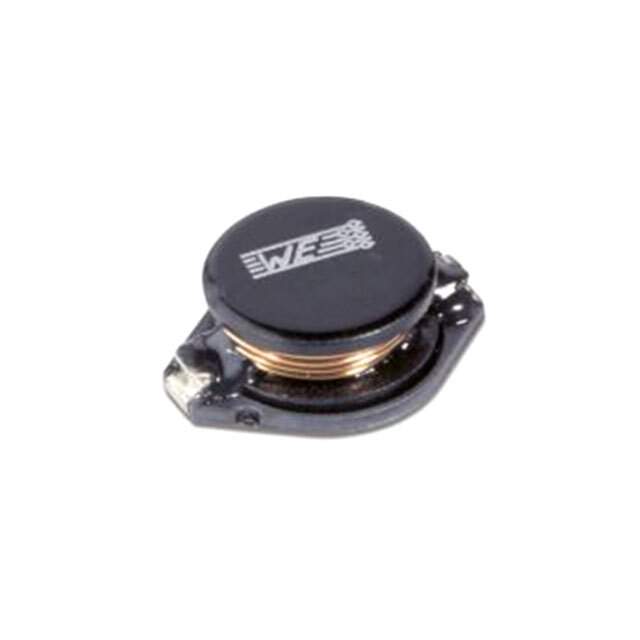

The Wurth Electronics Inc. 1130019-74458010 is a wirewound inductor with a ferrite core. It is unshielded and has an inductance of 10μH with a tolerance of ±20%.

  • Maximum DC resistance (DCR): 31mOhm.
  • Current saturation: 10A.
  • Frequency self-resonant: 20MHz.
  • Inductance frequency-test: 100kHz.
  • Operating temperature range: -40°C to 125°C.
  • Manufacturer package: non-standard.
  • Height-seated maximum: 0.280" (7.11mm).
  • Category: Inductors, Coils, Chokes.
  • Popularity: medium.
  • Pack quantity: 1.
  • MSL level: 1 (Unlimited).
  • Parts dimension: 0.730" L x 0.600" W (18.54mm x 15.24mm).
  • Current rating (amps): 4.3A.
