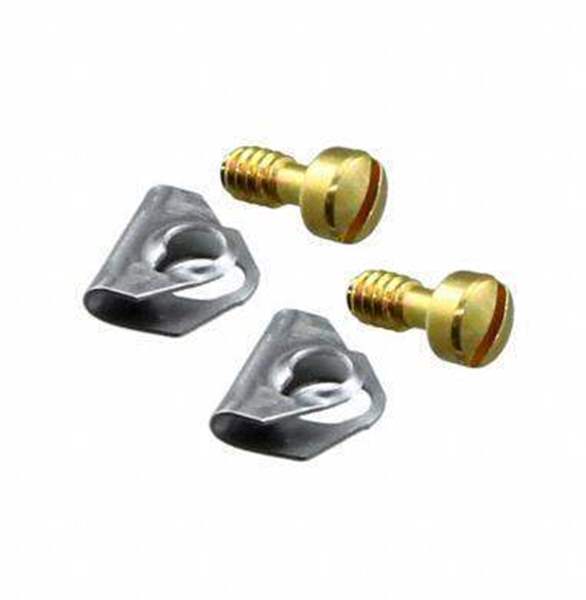

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub, D-Shaped Connector Jackscrews
Package Bag
Product Status Active
For Use With/Related Products AMPLIMITE Series HDE, HDP
Accessory Type Jackscrew, Slotted
Features Clip
Length - Below Head 0.220" (5.59mm)
Thread Size 4-40
Win Source Part Number WS1209133-5205980-3
Ultra Librarian 3D Model Ultra Librarian 5205980-3 CAD Model

Description

Jackscrew, Slotted For AMPLIMITE Series HDE, HDP
