Same model may have multiple batches, images only for reference.

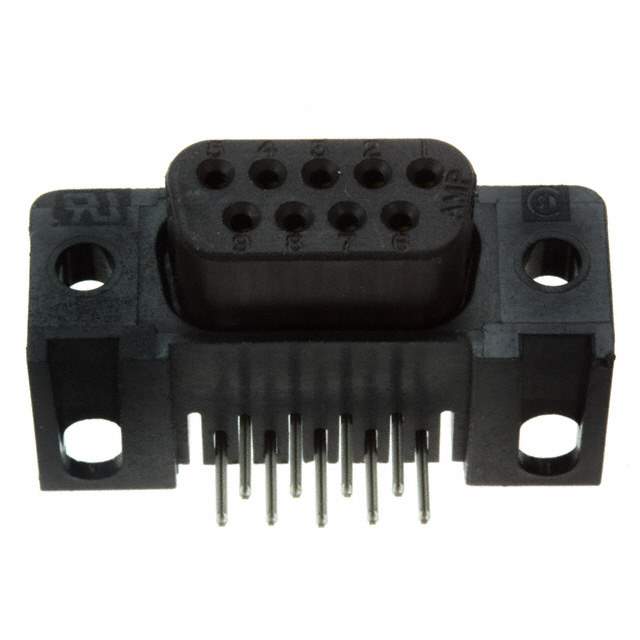

5745131-1 Real Image
Same model may have multiple batches, images only for reference.

5745131-1

Part No 5745131-1
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB RCPT 9POS R/A SOLDER
Datasheet
5745131-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Packaging Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Through Hole, Right Angle
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 105°C
Voltage Rating 125V
Current Rating 6A
Color Black
Contact Material Phosphor Bronze
Backset Spacing 0.318" (8.08mm)
Win Source Part Number 764781-5745131-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5745131-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 series connector from TE Connectivity AMP Connectors is a through-hole, right angle D-sub receptacle with female sockets.

  • Signal Contacts: 9
  • Contact Finish: Gold
  • Flash Finish Thickness: Flash
  • Operating Temperature: -55°C to 105°C
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Housing Material: Not Specified
  • Material Flammability Rating: UL94 V-0
  • Color: Black
  • Mounting: Tray
  • Backset Spacing: 0.318 inches (8.08mm)
