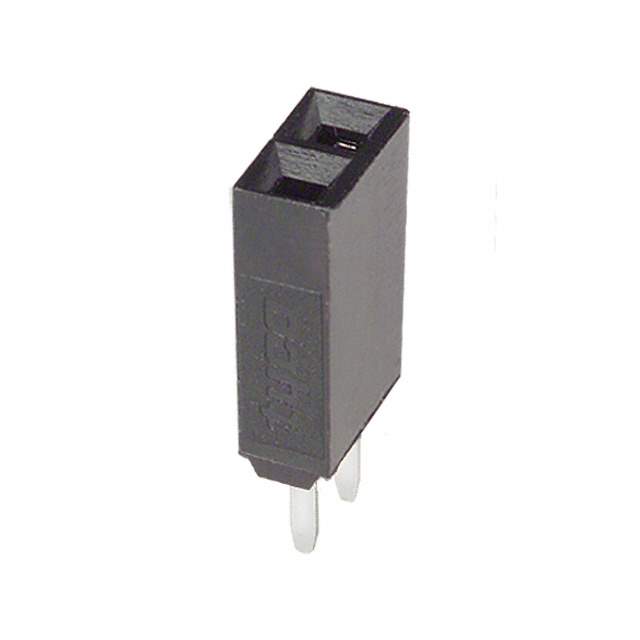

534206-1

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	534206-1
Manufacturer	TE Connectivity
Catalog	Rectangular - Board to Board Connectors
Description	CONN RCPT 2POS GOLD PCB / 2 Position Receptacle Connector Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	TE Connectivity AMP Connectors
Series	AMPMODU Mod II
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.320" (8.13mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-65°C ~ 125°C
Contact Finish - Post	Tin-Lead
Current Rating (Amps)	2A
Insulation Material	Polyester, Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	150.0µin (3.81µm)
Base Product Number	534206
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	534206-1-ND,-534206-1-SI,5342061,A26451
Standard Package	220
Win Source Part Number	980316-534206-1
Ultra Librarian 3D Model	Ultra Librarian 534206-1 CAD Model

Description

The 980316-534206-1 is a 2-position, board-to-board or cable receptacle connector from TE Connectivity AMP Connectors.

Series: AMPMODU Mod II
Fastening Type: push-pull
Contact Shape: square
Mounting Type: through-hole
Contact Material: phosphor bronze
Mating Finish: gold
Post Finish: tin-lead
Insulation Material: polyester and glass-filled
Color: black
Temperature Range: -65°C to 125°C
Current Rating: 2A
RoHS: non-compliant
Standard Package: 220
