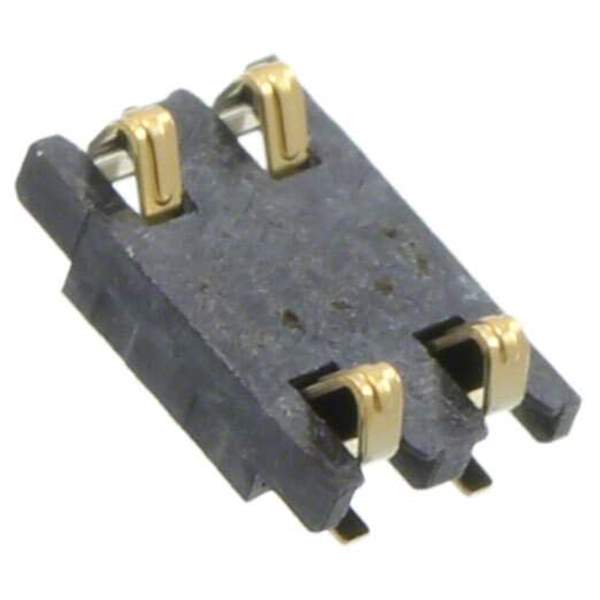

2199172-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Spring Loaded
Mfr TE Connectivity AMP Connectors
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Connector Type Compression Contact, Non-Gendered
Number of Contacts 4
Pitch 0.063" (1.60mm)
Number of Rows 2
Row Spacing 0.087" (2.20mm)
Mounting SMD (SMT)
Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 3.94µin (0.10µm)
Base Product Number 2199172
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A120582TR,-2199172-1-SI,A120582CT
Standard Package 30,000
Win Source Part Number 1142414-2199172-1
Ultra Librarian 3D Model Ultra Librarian 2199172-1 CAD Model

Description

The 2199172-1 is a rectangular connector with compression contact and non-gendered features.

  • Contact Type: Compression
  • Gender: Non-Gendered
  • Number of Contacts: 4
  • Mounting Type: SMD (SMT)
  • Pitch: 0.063" (1.60mm)
  • Row Spacing: 0.087" (2.20mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.94µin (0.10µm)
  • Packaging: Tape & Reel (TR), Cut Tape (CT)
  • Standard Package: 30,000
  • Contact Material: Phosphor Bronze
  • ECCN: EAR99
