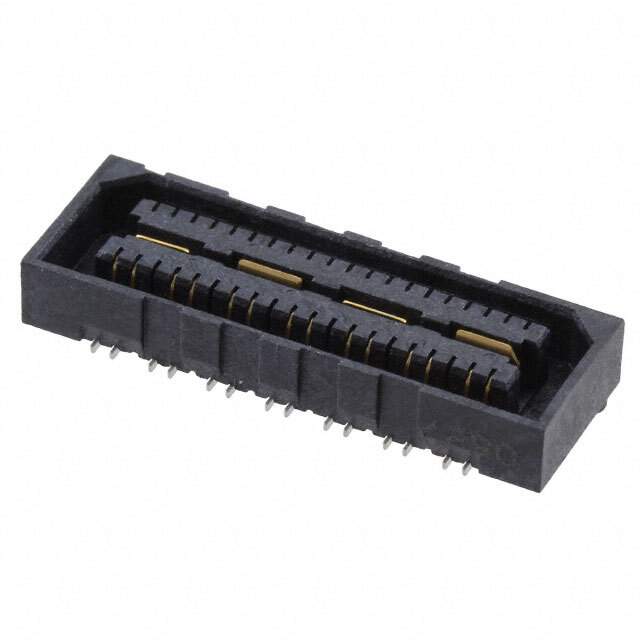

QSE-014-01-F-D-DP-A

Name: QSE-014-01-F-D-DP-A
Brand: Samtec Inc.
SKU: 993332
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	QSE-014-01-F-D-DP-A
Manufacturer	Samtec Inc.
Catalog	Rectangular - Board to Board Connectors
Description	CONN DIFF ARRAY RCP 28P SMD GOLD / 28 Position Connector Differential Pair Array, Female Surface Mount Gold
Datasheet	QSE-014-01-F-D-DP-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Q Strip® QSE
Package	Tray
Connector Type	Differential Pair Array, Female
Number of Positions	28
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Board Guide, Ground Bus (Plane)
Contact Finish	Gold
Contact Finish Thickness	3.00µin (0.076µm)
Mated Stacking Heights	5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board	0.128" (3.25mm)
Base Product Number	QSE-014
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM10640,QSE-014-01-F-D-DP-A-ND
Standard Package	96
Win Source Part Number	993332-QSE-014-01-F-D-DP-A
Ultra Librarian 3D Model	Ultra Librarian QSE-014-01-F-D-DP-A CAD Model

Alternative Products

Description

This Q Strip® QSE connector is a female differential pair array with 28 positions and a pitch of 0.031" (0.80mm).

Connector Type: Female Differential Pair Array
Number of Positions: 28
Pitch: 0.031" (0.80mm)
Contact Finish: Gold
Contact Finish Thickness: 3.00µin (0.076µm)
Type: Edge Type Mezzanine (Board to Board)
Features: Board Guide and Ground Bus (Plane)
Height Above Board: 0.128" (3.25mm)
Mounting: SMD (SMT)
RoHS: Compliant
Mated Stacking Height: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, or 25mm
