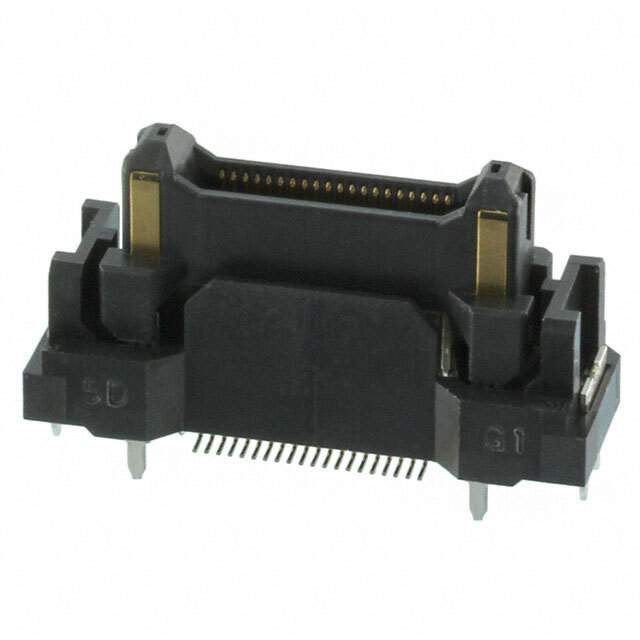

FX23-40P-0.5SV15 Real Image
Same model may have multiple batches, images only for reference.

FX23-40P-0.5SV15

Part No FX23-40P-0.5SV15
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN HDR 40POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 30000674-FX23-40P-0.5SV15
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects -Rectangular Connectors -Arrays, Edge Type, Mezzanine (Board to Board)
Series FunctionMax™ FX23
Package Tray
Product Status Active
Base Product Number FX23
Features Board Guide
Pitch 0.020" (0.50mm)
Number of Positions 44 (40 + 4 Power)
Mated Stacking Heights 15mm, 20mm
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian FX23-40P-0.5SV15 CAD Model

Description

The FunctionMax™ FX23 is a series of rectangular connectors manufactured by Hirose Electric Co Ltd. The connectors are designed for use in board-to-board applications and come in an array, edge type, mezzanine format. The FX23 series has 44 positions, with 40+4 power configurations. The pitch of the connectors is 0.020" (0.50mm) and they feature board guides. The contact finish is gold and the connectors come in a tray package. The FX23 series has mated stacking heights of 15mm and 20mm.
